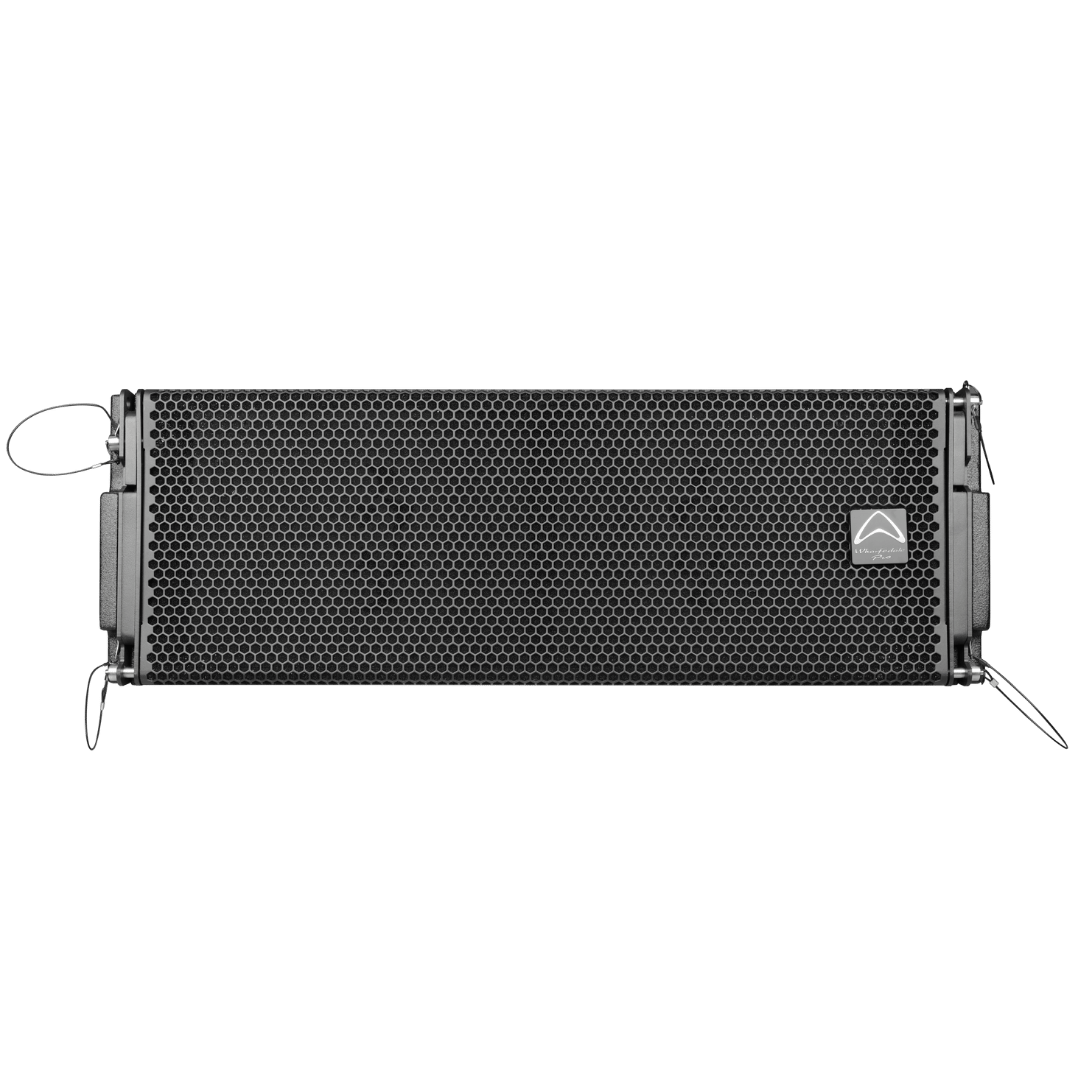

Wharfedale Pro XLA-308 3-way Passive Line Array

Wharfedale Pro XLA-308 3-way Passive Line Array

The Wharfedale Pro XLA-308 is a premium 3-way passive line array element from Wharfedale Pro’s flagship XLA system, engineered for high-performance touring, large-scale live sound, and demanding fixed-installation applications. Designed around professional B&C transducers and advanced acoustic technology, the XLA-308 delivers exceptional clarity, projection, and phase coherence across a wide frequency range.

At the low-frequency end, the XLA-308 incorporates two 8-inch neodymium woofers, each housed in its own independently vented chamber. These drivers feature aluminium frames, 2.5-inch voice coils, copper shorting caps, and precision phase plugs, providing powerful and controlled low-frequency reproduction while keeping the enclosure relatively compact.

The mid/high section uses a time-coherent B&C coaxial compression driver, paired with Wharfedale Pro’s EVO-FLOW waveguide. This design provides excellent phase coherence, detailed reproduction and consistent coverage, with a nominal 110° horizontal × 10° vertical dispersion. The vertical splay angle can be adjusted from 0° to 10° in 1° increments, allowing multiple XLA-308 elements to be configured for precise audience coverage.

The XLA-308 is a passive bi-amplified system, providing separate LF and MHF sections. It is rated at 700 W LF + 150 W MHF continuous, increasing to 2,800 W LF + 600 W MHF peak. The system is designed to be used with Wharfedale Pro’s preset library for correct system processing and performance.

Built from birch plywood with a durable powder-coated perforated steel grille and Tough-Tone finish, the XLA-308 is designed for professional deployment. Integral three-point rigging allows the enclosure to be flown or ground-stacked as part of a scalable XLA system.

Specifications

Specification
Details

Model
Wharfedale Pro XLA-308

Product Type
Line Array Element

System Type
Passive 3-Way Bi-Amp

LF Drivers
2 × 8″ Neodymium

LF Driver Brand
B&C

LF Voice Coil
2.5″

LF Frame
Cast Aluminium

MF Driver
B&C Coaxial Compression Driver

MF Voice Coil
3″

HF Driver
B&C Coaxial Compression Driver

HF Voice Coil
2″

HF Diaphragm
HT Polymer

HF Exit
1.4″

Waveguide
EVO-FLOW

Frequency Response ±3 dB
58 Hz – 20 kHz

Frequency Range -10 dB
40 Hz – 25 kHz

Sensitivity
112 dB (2.83 V / 1 m)

LF Continuous Power
700 W

MHF Continuous Power
150 W

LF Programme Power
1,400 W

MHF Programme Power
300 W

LF Peak Power
2,800 W

MHF Peak Power
600 W

LF Impedance
8 Ω

MHF Impedance
8 Ω

Crossover Frequency
500 Hz

Nominal Coverage
110° H × 10° V

Vertical Splay
0°–10°, adjustable in 1° increments

Input Connectors
2 × speakON NL4

Enclosure
Birch Plywood

Grille
Powder-Coated Perforated Steel

Finish
Black Tough-Tone

Rigging
Integral 3-Point Rigging

Deployment
Flying or Ground

Pole Mount
No

Preset Library
Yes

Front Height
269.6 mm

Rear Height
194.2 mm

Width
790 mm

Depth
430.7 mm

Net Weight
33 kg

Gross Weight
36 kg

Included Accessory
User Manual

Key Features

• Professional 3-way passive line array element

• Designed for bi-amplified operation

• Dual 8-inch B&C neodymium woofers

• Time-coherent B&C coaxial mid/high compression driver

• Advanced EVO-FLOW waveguide

• 110° horizontal × 10° vertical nominal coverage

• Adjustable vertical splay from 0°–10°

• 700 W LF + 150 W MHF continuous power

• Up to 2,800 W LF + 600 W MHF peak power

• Professional birch plywood enclosure

• Integral 3-point rigging system

• Suitable for flying or ground deployment

• Designed for use with Wharfedale Pro system presets

• Ideal for touring sound, concerts, festivals, large venues, houses of worship and professional installations.
