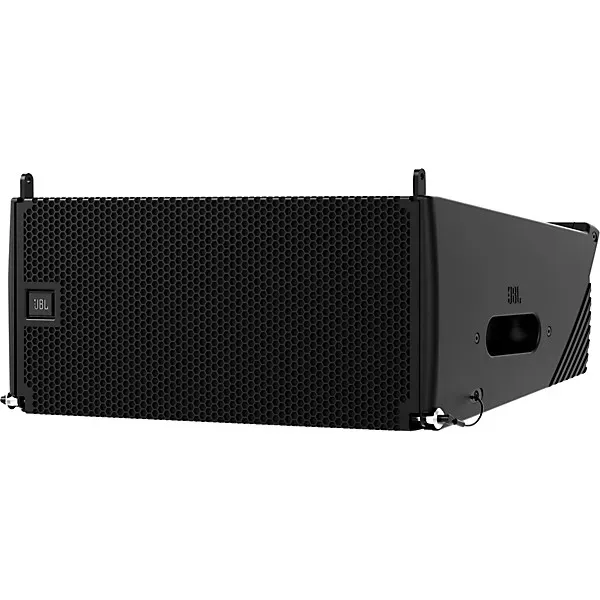

JBL SRX906LA 880W Powered Line Array Loudspeaker

JBL SRX906LA 880W Powered Line Array Loudspeaker

If you need to turn up the volume in your venue, JBL’s SRX906LA Powered Line Array Loudspeakers delivers up to 880 watts of crisp, clean sound! The SRX906LA boasts two 6.5-inch neodymium woofers and a 3-inch compression driver — more than enough power to handle live sound in your small- to medium-sized venue. Plus, the integrated power and a wide range of DSP effects make the SRX906LA an excellent choice for those seeking a plug-and-play solution right out of the box. The live sound engineers love the amount of control JBL built into the SRX900 series — a rear-panel LCD makes switching up your settings simple. And if you need control from a distance, the SRX906LA is both Ethernet and Wi-Fi compatible to connect to JBL’s all-encompassing software suite. Looking to bolster your live sound system? The SRX906LA fits the bill.

High-performance, 6.5-inch drivers

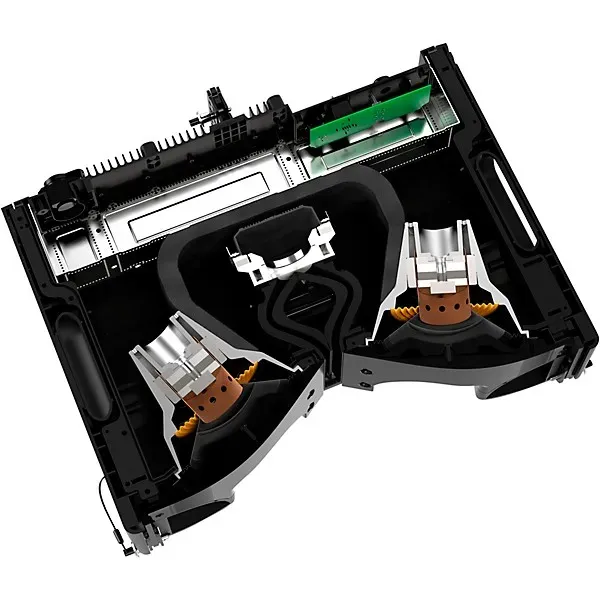

JBL’s SRX906LA loudspeakers are powered by two 6.5-inch neodymium woofers, along with a 3-inch compression driver for crystal-clear sound fidelity and a highly impressive SPL. The SRX906LA utilizes JBL’s innovative RBI (Radiation Boundary Integrator), mounting both the high and low transducers onto one horn — this greatly improves your speaker’s horizontal directivity and helps to optimize your sound potential. Plus, the large horn size delivers an extended low-frequency punch and aids in the reduction of energy in the rear of the speaker array.

Scale up your system

The SRX900 series is an all-encompassing system, including loudspeakers, subwoofers, software, and a wealth of accessories that will take your sound to the next level. However, if you’re looking to start small and build your way up to a world-class system, the SRX900 series is built with effortless scalability in mind; every product in the SRX900 series is designed with the same voicing targets and phase characteristics of JBL’s other tour sound offerings to perfectly mix and match a system to your particular needs.

Optimize your sound

No power amp, no problem! The SRX900 series’ fully integrated class-D power is an uncompromising design that’s tailor-made to get the most out of your speakers. In addition, powerful DSP features including Array Size Compensation, FIR-based Throw Distance Correction filters, 2,000ms of delay, and 24 user-adjustable filters are included to perfectly optimize your system, regardless of your setup and space. Finally, adjusting your controls is a breeze thanks to the SRX900 series combo of a rear panel LCD and Wi-Fi control through JBL’s software suite!

JBL SRX906LA Powered Line Array Loudspeaker Features:

• 880W 2 x 6.5-inch with 3-inch compression driver design can easily handle most small- to medium-sized venues

• Maximum peak output of 134dB

• Designed with commonly-shared voicing targets between JBL’s other tour sound options, making it easy to build up your system

• RBI technology enhances horizontal directivity and lessens cabinet size

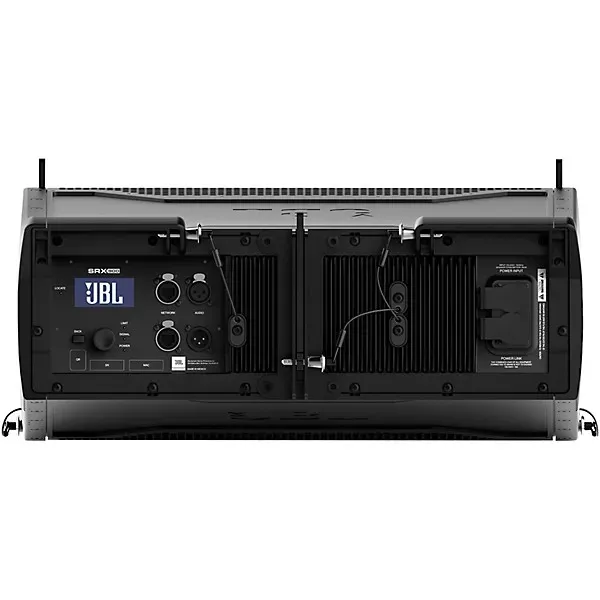

• Rear-panel LCD for easy adjustment of settings and presets

• Wide-ranging DSP effects, including Array Size Compensation, FIR-based Throw Distance Correction filters, 2,000ms of delay, and 24 user-adjustable filters for complete optimization of your sound

• Compact and lightweight FEA-optimized composite enclosure construction for easy portability and optimized internal volume

• JBL software package for complete control over the SRX900 system available on Windows, macOS, and iPad OS

Tech Specs

• Powered:Yes

• Power Configuration:Bi-amped

• Channels:2-channels

• LF Driver Size:2 x 6.5" woofer

• HF Driver Size:1.5" exit neodymium compression driver, 3" voice coil

• LF Driver Power Amp:400W Continuous

• HF Driver Power Amp:200W Continuous

• Total Power:600W Continuous, 880W Peak

• Inputs:1 x XLR

• Outputs:1 x XLR

• Data I/O:2 x EtherCon

• Frequency Range:63Hz-17khz (-10 dB)

• Maximum Peak SPL:134 dB SPL

• Horizontal Coverage Angle:120 Degrees

• Vertical Coverage Angle:Varies with configuration

• Enclosure Material:Polypropylene

• Mounting Options:Three-point captive suspension plates

• Power Source:1 x powerCON TRUE1 (in), 1 x powerCON TRUE1 (out/loop)

• Height:9.5"

• Width:19.9"

• Depth:16.5"

• Weight:37 lbs.
