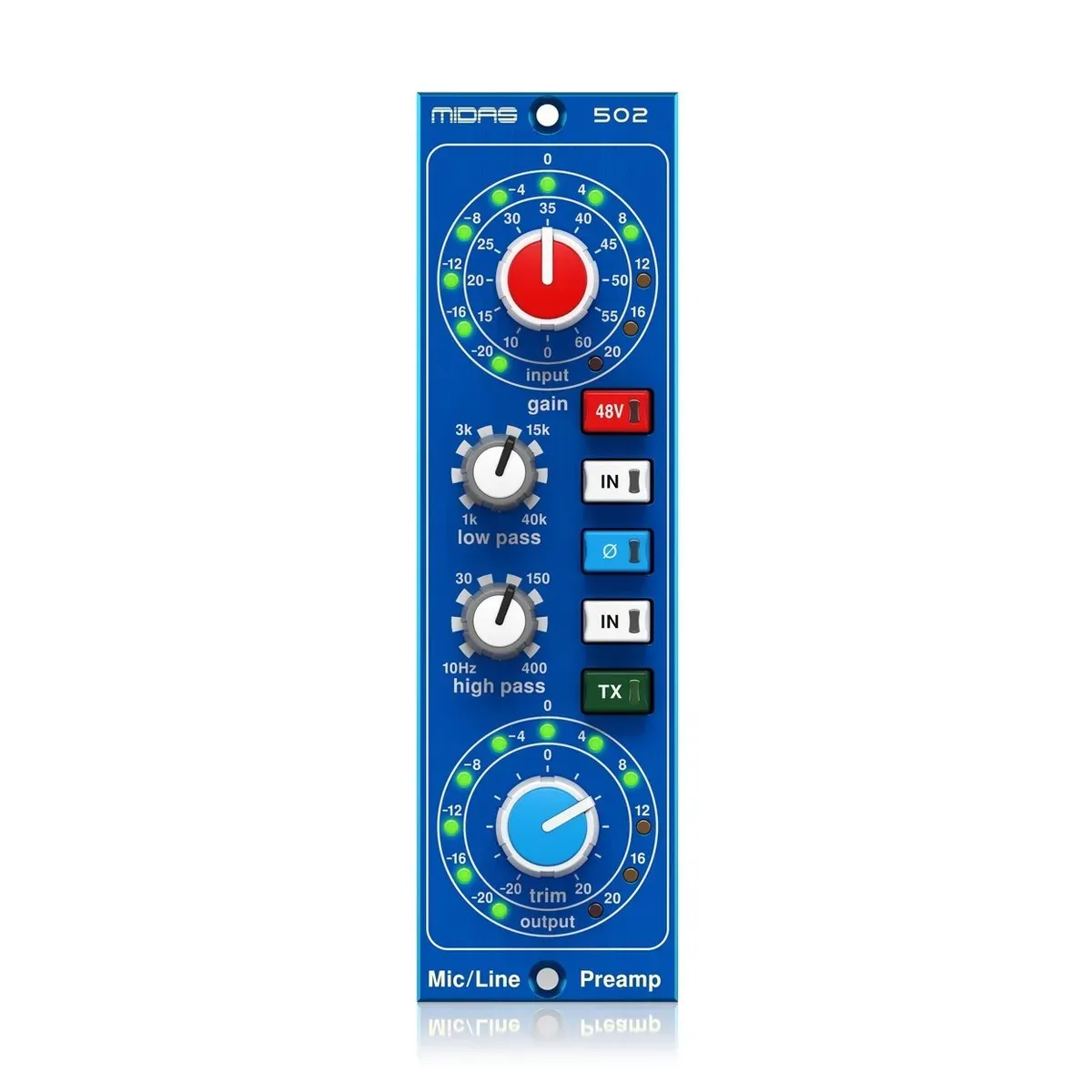

Midas 502 V2 Microphone Preamplifier Module

The Midas 502 V2 is a microphone preamplifier module that gives you world-renowned clarity and warmth alongside premium performance. Boasting an enhanced amp design with four discrete ultra-low noise transistors, you can take advantage of powerful, transparent sound combined with exceptional sonic versatility.

Alongside the phenomenal audio performance of the 502 V2, you have astounding precision at your fingertips. High-accuracy rotary switch gain controls provide intuitive gain adjustment, whilst twin 11-segment LED I/O meters let you view the exact status of your signal at a glance. The capabilities of the 502 V2 are extensive for such a compact module. And with the ability to fit into a flexible 500 Series rig, you can adapt your setup to meet your needs with ease.

The Midas 500 Series

Premium performance with that legendary Midas sound. Bringing industry-standard control and flexibility to the powerful 500 Series format, Midas have been able to create a diverse array of powerful modules to give you exceptional power in an adaptable design. And now with the V2 editions, you can take advantage of enhanced premium-quality performance to craft the sound you're looking for.

Award-winning preamplification

The Midas 502 V2 utilises an enhanced Midas preamp, the same preamp that engineers the world over regard as the ultimate Midas sound. Crafted using only the highest quality premium-grade components, the 502 V2 delivers exceptional warmth and depth, as well as an incredibly accurate sonic image.

The preamplifier within the 502 V2 has been enhanced with the addition of four discrete ultra-low noise input transistors, providing truly astounding sonic versatility with low-noise, transparent performance capabilities. Audible on countless live albums and in an endless list of concerts, the Midas preamp is an award-winning solution with unsurpassed flexibility.

Classic XL4 low/high-pass filters

Midas are renowned for their legendary XL4 mixers. The XL4 was equipped with highly regarded low-pass and high-pass filters that aided the mixer's incredible sonic characteristics and flexibility. The Midas 502 V2 delivers those same characteristics, providing you with a low-pass filter with an adjustable filter frequency from 1kHz up to 40kHz, and a high-pass filter with an adjustable frequency from 10Hz up to 400Hz. The filters utilise a 12dB/Oct slope, both with -3dB points.

Twin balanced outputs

With the same main electronically-balanced output found on most of Midas' revered mixing consoles, the 502 V2 delivers an incredibly clean signal at all signal levels. However, the 502 V2 also provides you with the option of switching to a twin aux output using the unit's TX switch when fitted in a Midas L6 or L10 rack.

This second output is independently driven and balanced, and is identical to the main output. On top of the module's powerful and flexible preamplification capabilities, this also allows you to utilise the 502 V2 as an active mic/line splitter, and also gives you high-current outputs that can easily drive long audio cables.

Accurate and intuitive

Be confident in your meters. With the 502 V2's precise LED metering capabilities, you can keep an eye on the exact status of your signal at all times. An ultra-precise 11-segment rotary LED meter is used to read your signal after the amplifier, and before the filter, giving you -20dBu/+20dBu metering in 4dB steps. There's also a similar handy meter for adjusting the trim of your output that utilises the same format.

But the precision doesn't stop there. The 502 V2 boasts an accurate 12-position rotary gain control, providing you with plenty of gain settings ranging from 0 (unity) to +60dB in 5dB steps. There's also a fully-variable pot for adjusting the output trim across a +/-20dB range. Combining these together, you have an enormous +80dB of gain on tap, which is ideal for handling even the lowest output microphones. You can even use the output trim control to adjust the colouration of your signal.

Features

• Compact high-performance 500 Series premium Midas microphone/line preamplifier

• Award-winning Midas amp has been enhanced with quad discrete ultra-low noise input transistors

• Legendary Midas input allows up to +24dBu signal levels with no pad whilst featuring the much-loved soft clipping characteristic

• Classic Midas XL4 swept low and high-pass filters with independent selection switches

• Switchable twin aux balanced output gives you mic/line splitter capability when installed in Midas L6 or L10 racks

• Unique twin precision 11-segment LED circular input and output level metering

• High-accuracy rotary switch gain control with 60dB range in 5dB steps

• Output gain trim with +/-20dB range controls input and output stage colouration

• Total gain range is an amazing -20dB to +80dB, easily accommodating low-output microphones

• Large gain trim knobs provide precise control of input and output gains

• Illuminated switches for filters, +48V, polarity reverse, and (TX) twin aux output enable

• Power up mute relays prevent switch on thumps

• Premium quality components throughout for a crystal-clear audiophile signal path

• Designed and engineered in the UK

• Covered by Midas' 10-year warranty program
