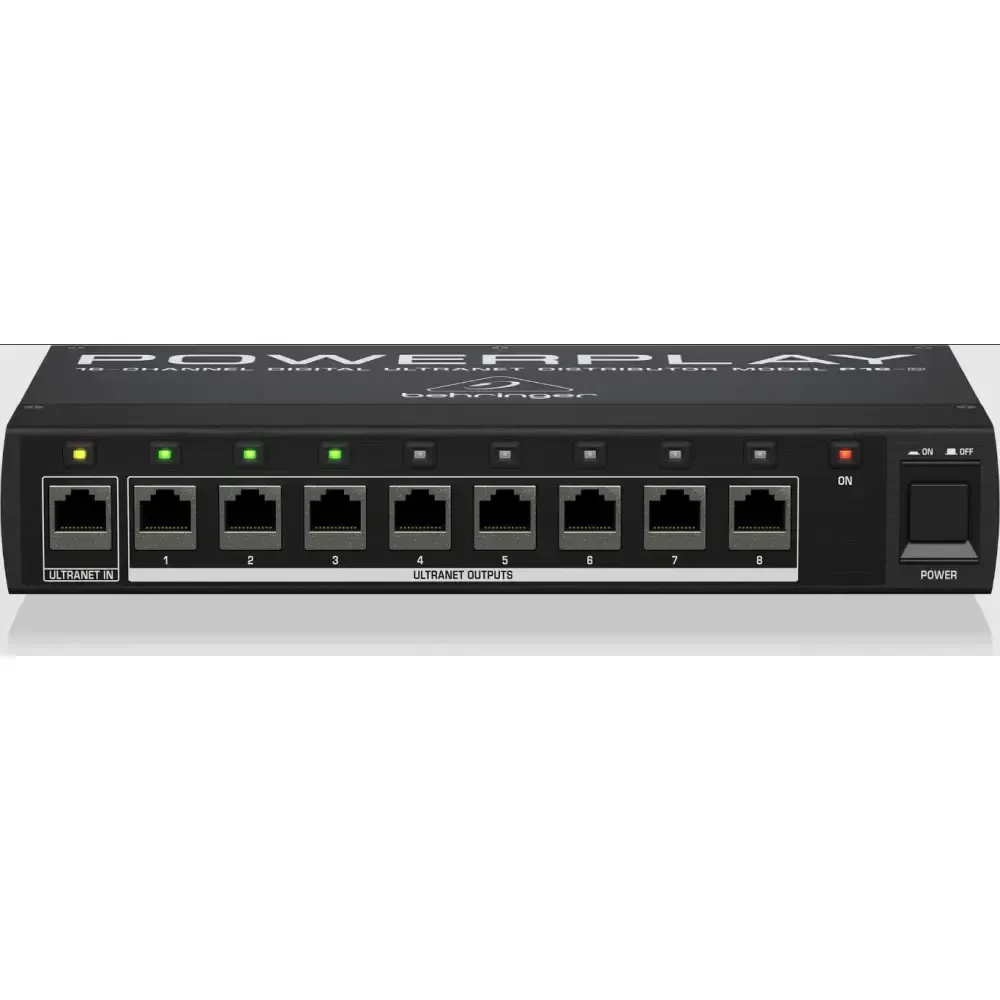

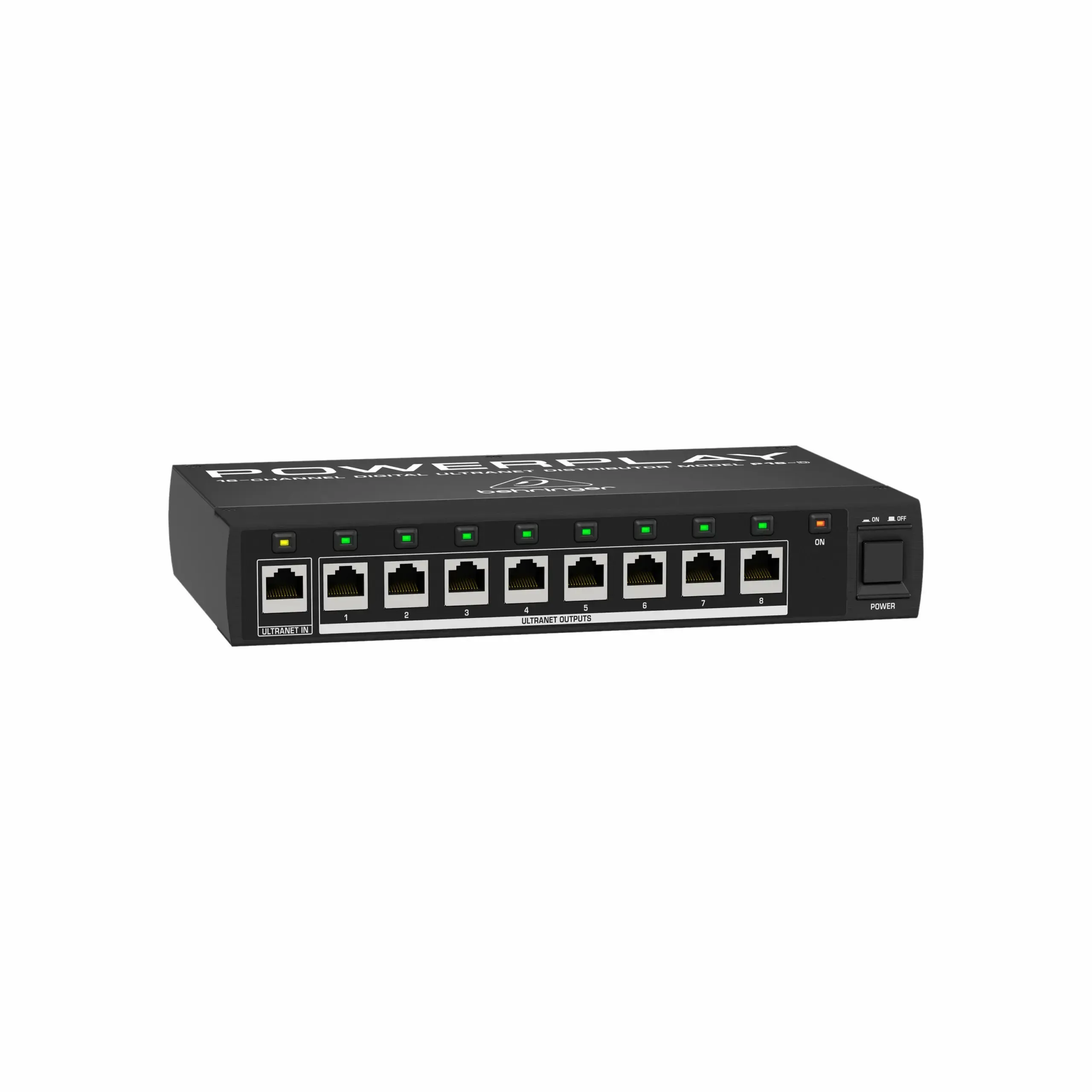

Behringer P16D Digital Distributor

Behringer P16D Digital Distributor

The Behringer Powerplay P16-D Ultranet Distributor is a 16-channel system designed to expand existing P16-M systems. Compatible with the X32 Mixing Console, P16-I Input Module and the S16 Digital Snake, the P16-D offers 8 x Ultranet RJ-45 outputs for system expansion. The Ultranet distributor also features an integrated power supply, noise-free audio and excellent transient response.

Seamless Ultranet Connection

Ultranet is an intuitive technology that allows transmission between 16 separate channels in pristine 24-bit digital audio quality, as well as control data through a single CAT5 cable between devices. Compatible devices include mixers, powered loudspeakers and personal monitoring systems. With Ultranet networking, crosstalk is eliminated and installation becomes incredibly easy and time-efficient.

Excellent Components

Should you already own an X32 Mixer, the P16-D will connect straight to your Ultranet output, giving power to up to 6 P16-Ms. The P16-D features an LED status for both RJ45 inputs and outputs, as well as an internal autorange power supply to provide ultimate flexibility no matter which country you are in.

Features

• Distribution hub for P16-I system expansion

• 1 Ultranet input feeds 8 Ultranet outputs (RJ-45)

• Provides bus-power & 16-channel signal transmission for all 8 outputs

• Up to six P16-D Ultranet distributors can be combined for total of 48 P16-M personal mixers

• Status LED indicators for RJ-45 input & 8 RJ-45 outputs

• Internal autorange power supply

Specifications

• Digital Processing

• A/D Conversion: 24-Bit, 44.1 / 48kHz Sample Rate

• Converter Type: 24-Bit, Delta-Sigma

• System

• Signal: 16 Channels

• Latency: Frequency Response: 20Hz to 20kHz (+0 / -3 dB)

• Dynamic Range: Typical 92 dB

• Cabling

• Connectors: RJ45

• Cables: Shielded CAT5

• Cable Length: Max. 246 ft / 75 m Recommended

• Digital Inputs/Outputs (Ultranet)

• Ultranet In: 1 x RJ45

• Remote Outputs: 8 x RJ45

• Power Supply/Voltage

• USA/Canada: 120 V, 60Hz

• UK/Australia/Europe: 220-240 V, 50/60Hz

• Korea/China: 220-240 V, 50/60Hz

• Japan: 100 V, 50/60Hz

• Power Consumption: 40W

• Mains Connection: Standard IEC Receptacle

• Weight: 1.1 kg

• Dimensions

• Height: 44 mm

• Width: 254 mm

• Depth: 160 mm
