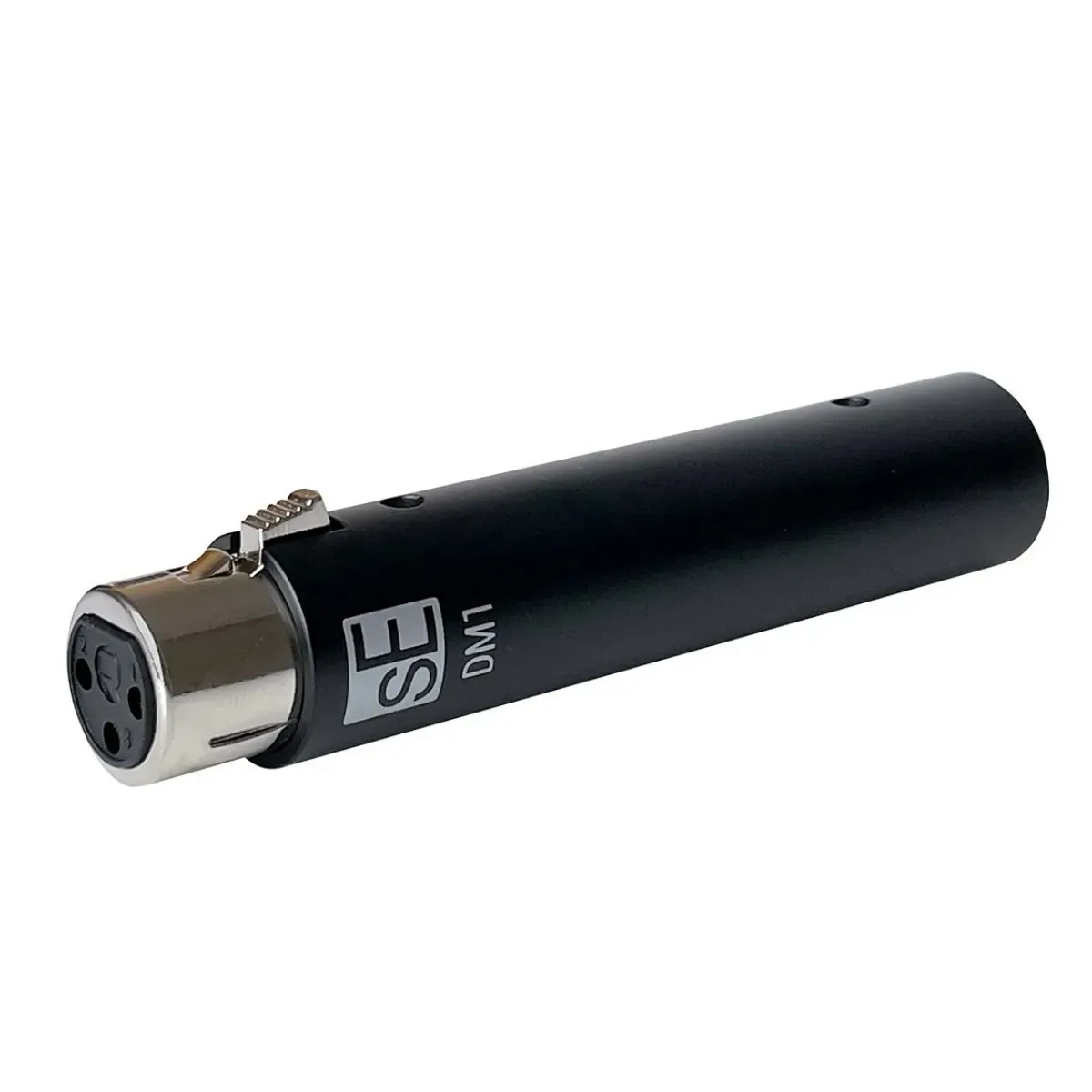

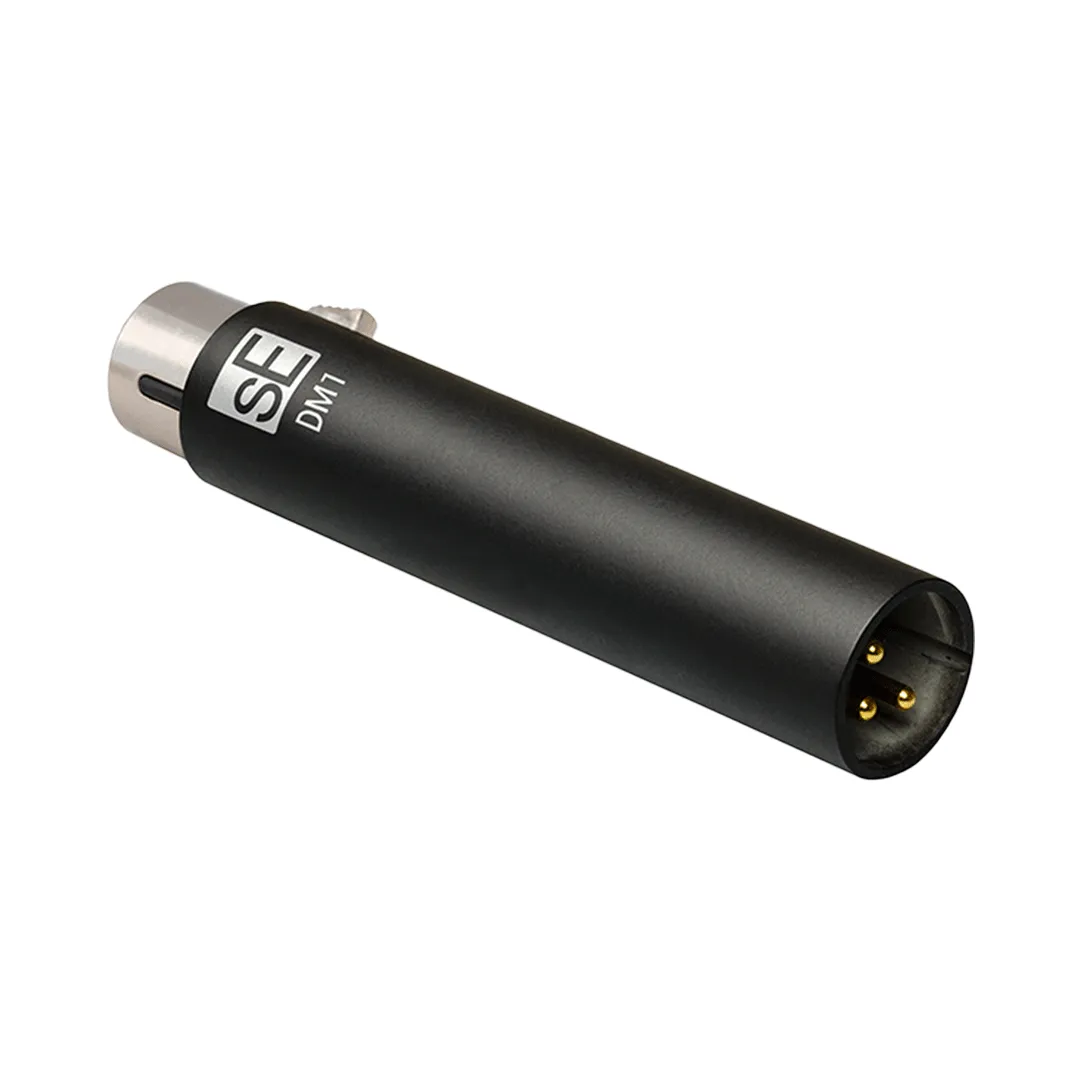

sE Electronics DM1 Dynamite in Line Mic Pre-Amp - Black

sE Electronics DM1 Dynamite in Line Mic Pre-Amp - Black

The sE Electronics DM1 Dynamite in Line Mic Pre-Amp is an explosive preamplifier designed for passive dynamic or ribbon microphones that delivers a +28dB of gain. The ideal solution for podcasters, studio recording or on-stage microphones, the DM1 delivers clean, consistent and accurate gain to boost the level of your microphone and improve its performance for cleaner recordings. Constructed using a sophisticated, class-A transformerless design with specially selected FETs, the DM1 is able to deliver a consistent gain level, regardless of the input load with the lowest noise level in its class, all without injecting any colouration to your tone. RF interference and buzz is effectively eliminated thanks to the integrated output buffer amplifier.

Compact and portable with all-metal construction, the DM1 Dynamite Preamp is able to meet the demands of even the most challenging environments. Whether you're on stage, in the studio or live on the air, the robust construction, high-quality parts including a gold-plated XLR output ensure you will never let you down and keep your performance running smoothly.

Clean, consistent and neutral gain stage

Boasting an uncompromising sound and build quality, the design of the DM1 Dynamite is perfectly suited for delivering a consistent +28dB of gain, regardless of the input load of your microphone or cable length. Whether you're a podcaster looking to maintain the cleanest gain possible or a recording engineer using non-sensitive dynamic microphones, the DM1 Dynamic Inline Pre-Amp doesn't alter the character of your tone as a result of the neutral and balanced frequency response from 10 Hz - 120,000 Hz. Expertly engineered, the DM1 performs exceptionally well in comparison to similar items within its class, with a minimal THD and output noise thanks to the dedicated output buffer amp.

Sophisticated Class-A electronics and dedicated output buffer

Using hand-selected, premium-grade FETs in conjunction with an elaborate and sophisticated electronic design, the DM1 Dynamite Preamp performs better than any other product available in its class. Plugging in your passive microphone has never sounded this good, allowing you to create studio-quality recordings effortlessly. The transformerless design ensures that your microphone signal will retain all of the detail while reducing any RF interference, buzz and hum that might occur.

Slim, rugged all-metal housing with premium finish

Whether you're a studio engineer, live sound engineer or musician, the DM1 Dynamite is built to withstand the most challenging environments. Constructed from high-quality materials, the DM1 Preamp boasts a rugged and road-ready all-metal design that is ready for both on the stage or in the studio. A gold-plated XLR connector rounds out the design to deliver reliable, lossless signal transfer.

Features

• Deliver a dynamite punch to your microphone with +28dB of clean, consistent gain

• Transparent and natural sound to retain the character of your microphone

• Ideal solution for boosting your passive dynamic microphone

• Immaculate audio performance with stunning detail and clarity

• Ideal for portable recorders for extra gain boost

• Consistent gain regardless of connected load

• State-of-the-art Class-A electronics with high-grade FET's for lowest noise performance in class

• Transparent signal through transformerless design

• Dedicated output buffer delivers low output impedance to power through very long cables

• Eliminates RF interference, buzz and hum

• Gold-plated XLR connector for lossless transmission of audio

• Rugged all-metal construction is ideal companion for life on the road

• Attach directly to your microphone or your input source and connect via XLR cable

Specifications

• Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)

• Gain: 28 dB (load 1kOhms)

• Max output level (0.5 THD): 8.3 dBV (2.6 V)

• Output noise level: 9 MicroV (JIS-A)

• Powering: 48 Volts according to IEC 61938

• Electrical impedance: 135 Ohms

• Recommended load impedance: >1k Ohms

• Current consumption: 3.0 mA

• Connectivity: 3-pin male/female XLR connector

• Phantom power: Requires phantom power

• Compatible with: Passive microphones that do not require phantom power including dynamic microphones, passive ribbon microphones and ceramic/piezo transducers

• Dimensions (Circumference x Height): : 19mm x 95.5mm

• Weight: 80g
