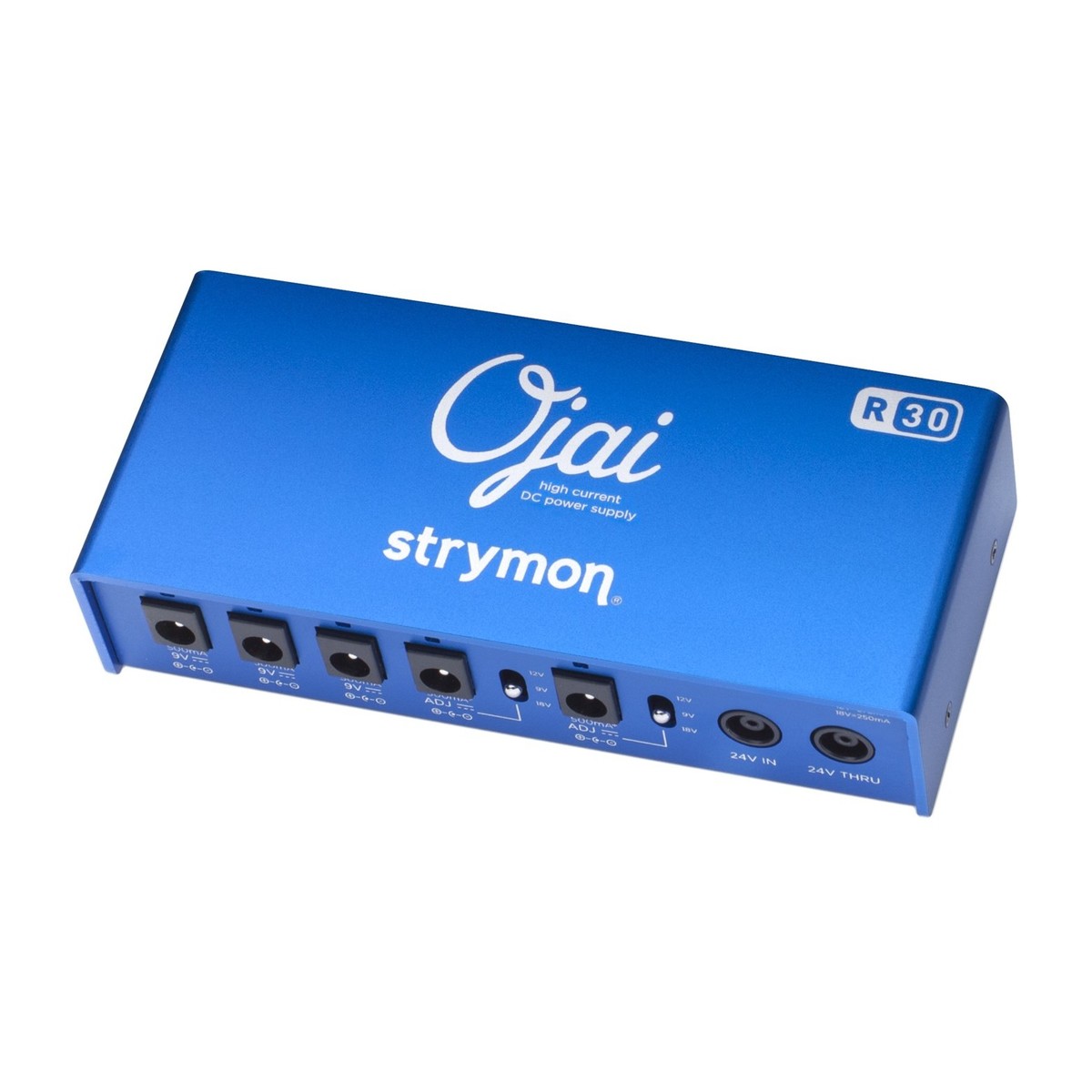

Strymon Ojai R30 Power Expansion Kit

Strymon Ojai R30 Power Expansion Kit

The Strymon Ojai R30 Power Expansio0n Kit is a professional-grade power supply for up to five FX pedals. It comes equipped with dual isolated outputs and power regulation, offering a stable and noise-free operation. Its outputs support high current-draw pedals – up to 500mA. If you’re worried about running out of outputs, the Ojai is an expandable system with a 24V thru to connect a Strymon Ojai and increases your number of pedal outputs. A rugged and compact unit, designed to fit under almost any pedalboard rig and deliver professional-quality clean power with no fuss.

A striking clean power

The Ojai lets you power up to five effects pedals. Each output supplies up to 500mA, which is enough to power all models, including Strymon’s range of high current-draw effects. One output is switchable between 9/12/18 volts, offering the flexibility to power high voltages and increased headroom.

Its outputs are dual buffered, meaning they are isolated both from each other and from the external AC input power. The power supply is also regulated both on the output and the input, ensuring solid sound and power under changing load conditions. These features give the Ojai a thoroughly professional operation with low noise and stable power for your delicate FX pedals.

Designed for perfection

This model comes equipped with a 24V thru output, allowing you to connect a Strymon Ojai to expand your system. This removes the worry that one power supply will limit your number of available pedals should you wish to expand your pedal rig. Overall, the Ojai is a thoughtfully designed and meticulously crafted pedal power supply, ready to get mounted on your pedalboard and, with zero fuss. A professional solution to powering your rig.

Key Features

• A quick and easy performance resulting from five pedal inputs

• Striking power provided by 500mA high current output

• Effortless pedalboard mounting thanks to thin profile

• Guaranteed to last during life on the road due to robust design

• 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)

Specifications

• Product Code: OJAI-R30-EXPANSION

• Power: 9V 500mA

• Max Power: 36 Watts

• Connectors:

• 4 Dedicated 9V Outputs (500mA)

• 1 Adjustable Outputs (9V, 12V, 18V)

• 24V Thru Jack

• 24V Input

• Dimensions: 13 x 5.8 x 2.9cm

• Weight: 0.17g
