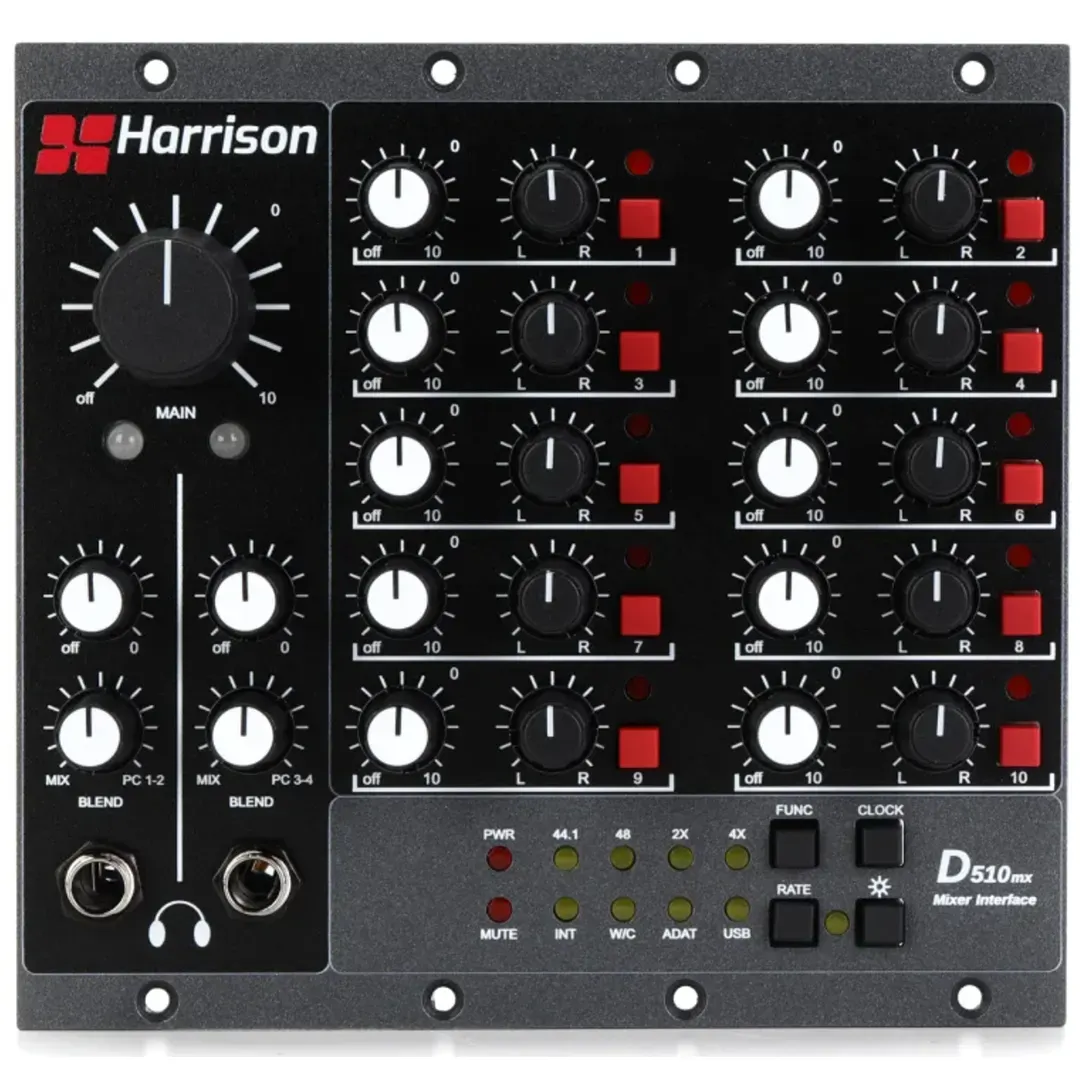

Harrison Audio D510mx Mixer Interface Module

Harrison Audio D510mx Mixer Interface Module

The Harrison Audio D510mx mixer interface module transforms a Harrison D510r 500 Series chassis into a powerful 10-in/2-out analog summing mixer, giving engineers a hands-on stereo mixdown solution built directly into their rack. As a result, studios can sum the outputs of up to eight 500 Series modules together, alongside two dedicated analog inputs, without needing a separate summing box or extra patch cabling. Installing into just two slots of the D510r chassis, the D510mx features individual pan and level controls for each channel, with pan settings following a precise -3dB pan law for accurate stereo placement. In addition, dual independent headphone outputs with blend control between the mix and a connected computer make monitoring quick and flexible. OneStopMusic South Africa stocks the Harrison Audio D510mx mixer interface module for studios across South Africa wanting a compact, high-quality analog summing solution.

Pristine Analog Summing With the Harrison Audio D510mx Mixer Interface Module

Whether you're summing a full mix or blending a handful of outboard returns, the Harrison Audio D510mx mixer interface module delivers exceptionally clean performance, with a maximum input level of +24dBu and total harmonic distortion plus noise below 0.003%. L/R metering LEDs give engineers a clear visual reference for gain staging, while the module's design keeps signal integrity high across all operating levels. However, the D510mx isn't limited to analog summing alone — it pairs seamlessly with optional D510dante or D510usb interface cards, allowing the same chassis to handle digital connectivity alongside analog mixing. OneStopMusic South Africa recommends the Harrison Audio D510mx mixer interface module to South African engineers looking to build a flexible, high-fidelity summing mixer around their D510r rack.

Tech Specs

• Configuration: 10-in/2-out analog mixer interface module

• Installation: Occupies 2 slots in the Harrison D510r 500 Series chassis

• Inputs: Sums up to 8 remaining 500 Series module slots plus 2 dedicated analog inputs

• Max Input Level: +24dBu

• Distortion: THD+N < 0.003%

• Controls: Individual pan and level per channel, -3dB pan law

• Metering: L/R metering LEDs

• Monitoring: 2 independent headphone outputs with MIX/PC blend

• Expansion: Compatible with optional D510dante or D510usb interface cards

Harrison Audio

Harrison Audio (Harrison Consoles) is a legendary American console manufacturer with a history stretching back to the 1970s, having built large-format consoles used on countless major film, broadcast, and music projects. Today, Harrison Audio channels that console-building heritage into the D510r — a flexible 500 Series rack system designed to turn a collection of 500 Series modules into a fully networked, Dante-ready studio or broadcast rig. As a result, Harrison Audio's interface cards and rack systems are built for facilities that need to bridge classic analog outboard gear with modern AoIP (Audio over IP) workflows. In addition, Harrison's AKM-based conversion and redundant networking options reflect the same reliability standards expected of broadcast-grade consoles. Whether you're building a Dante-networked 500 Series rig for a studio or a touring rack, Harrison Audio's interface cards make analog-to-network integration straightforward. OneStopMusic South Africa stocks Harrison Audio interface cards and rack systems for studios and broadcast facilities across South Africa.
