Sennheiser EW IEM G4-TWIN-A Dual Wireless In-Ear Monitor Set

Sennheiser EW IEM G4-TWIN-A Dual Wireless In-Ear Monitor Set

The EW IEM G4-Twin Wireless Monitor System Kit from Sennheiser is an addition to Sennheiser’s evolution family of wireless monitor systems. It includes an SR IEM G4 transmitter, two EK IEM G4 stereo receivers, two pairs of IE 4 earphones, a rod antenna, a GA 3 rackmount kit, and four AA batteries. This kit can be used as a rugged two-person, all-in-one wireless in-ear monitoring system for applications in live stage, theater, or house of worship performances.

The EK IEM G4 Stereo Bodypack Receiver with IE4 Earphones from Sennheiser is an addition to their evolution series of wireless systems. It features adaptive diversity technology and can be used when paired with a companion transmitter as part of a wireless RF monitoring system for live stage, theater, and rehearsal applications.

The stereo receiver is equipped with 1680 frequencies tunable in 25 MHz steps and has 20 fixed frequency banks with up to 16 compatible frequency presets and another 6 user banks with up to 16 user-programmable frequencies. The receiver’s menu-driven backlit display shows current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered.

Furthermore, this receiver includes a switchable high-boost and a multi-level limiter. The limiter is adjustable from -18 dB to -6 dB in 6 dB steps or defeatable (off). Built in a rugged metal housing, it is powered by two 1.5V AA sized batteries or by a Sennheiser BA 2015 rechargeable accupack. The earphone output uses a 3.5mm stereo jack socket.

What’s in the Box:

• SR IEM G4 stereo transmitter

• 2 EK IEM G4 stereo receiver

• 2 IE 4 earphones

• 4x AA batteries

• Rod antenna

• GA 3 rackmount set

• Quick guide

• Safety guide

• Manufacturer declaration sheet

• Power supply

Features at glance:

• Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

• Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

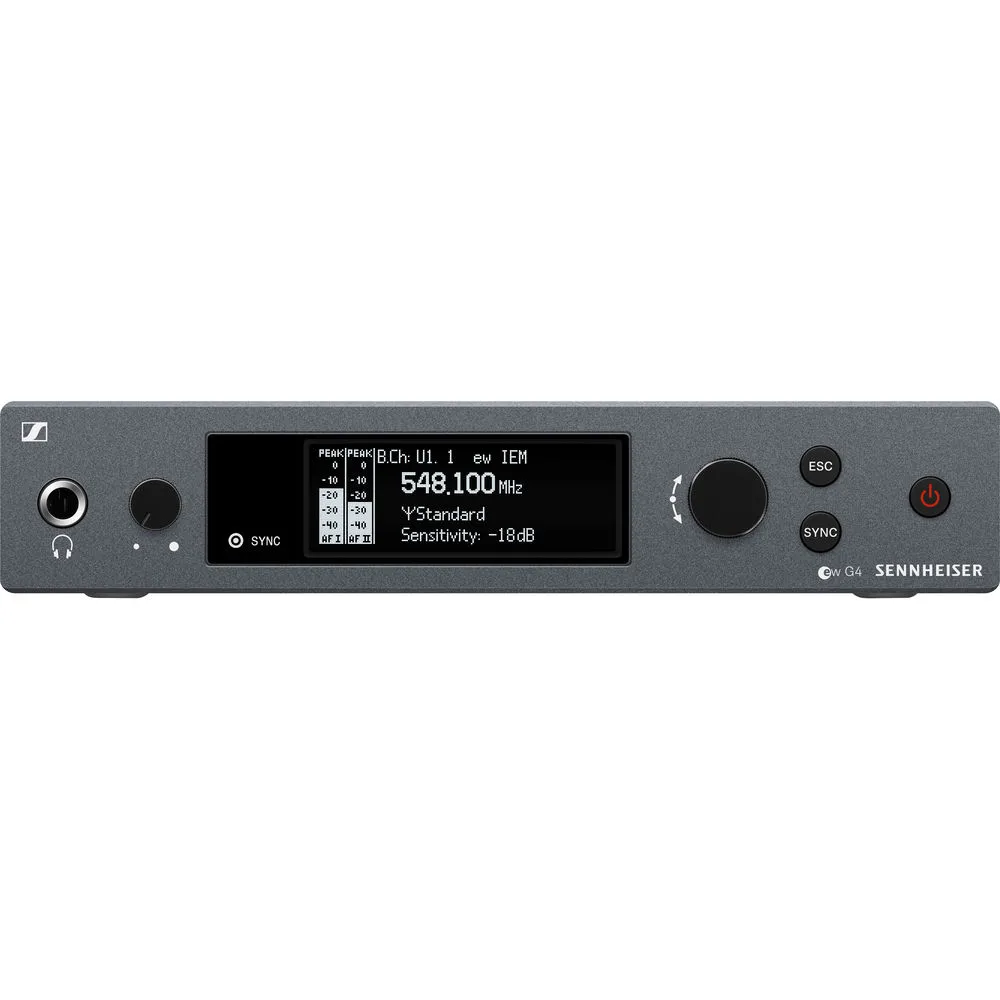

• Half-rack stereo transmitter in a full-metal housing with OLED display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Compatible with Sennheiser WSM control software for flexible frequency allocation

• Up to 16 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 50 mW) depending on country regulations

Specifications:

Modulation
Wideband FM

Frequency Band
516 to 558Mhz

Channels and Groups
Max 1680 Receiving Frequencies, Adjustable in 25 kHz Steps

20 Frequency Banks, Each with up to 16 Factory-Preset Channels, No Intermodulation

6 Frequency Banks with up to 16 Programmable Channels

Up to 42 MHz Switching Bandwidth

Nominal/Peak Deviation
±24 kHz / ±48 kHz

Diversity
Adaptive Diversity

Sensitivity
< 4 μV, Typically 1.6 μV for 52 dB

Adjacent Channel Selectivity
Typically ≥ 65 dB

Intermodulation Attenuation
Typically ≥ 70 dB

Blocking
≥ 80 dB

Squelch
5 to 25 dBμV, Adjustable in 2 dB Steps

Pilot Tone Squelch
Can Be Switched Off

Compandor System
Sennheiser HDX

Signal to Noise Ratio
Approximately 90 dBA

THD
≤ 0.9 %

Output Power
2 x 100 mW at 32 Ohms (at 2.4 V, 5% THD, Nominal Deviation)

High Boost
+8 dB at 80 kHz

Limiter
-18 dB to -6 dB in 6 dB Steps, Can Be Switched Off

Temperature
−13 to 158° F / -10 to +55° C

Receiver

Power Supply
2 AA Batteries, 1.5 V or BA 2015 Accupack

Nominal Voltage
3 V Battery

2.4 V Rechargeable Battery

Power Consumption
Typically 140 mA ≤ 25 μA (at Nominal Voltage with Transmitter Switched Off

Operating Time
Approximately 4 to 6 Hours (Depending on Volume Level)

Dimensions
82 x 64 x 24 mm

Weight
Approximately 125 g

Transmitter

Antenna Output
BNC Socket, 50 Ohms

MPX Pilot Tone
Frequency/Deviation: 19 kHz (±5 kHz)

Frequency Stability
±10 ppm

RF Output
Switchable

Low: Typically 10 mW

Standard: Typically 30 mW

High: Typically 50 mW

Frequency Response
25 to 15,000 Hz

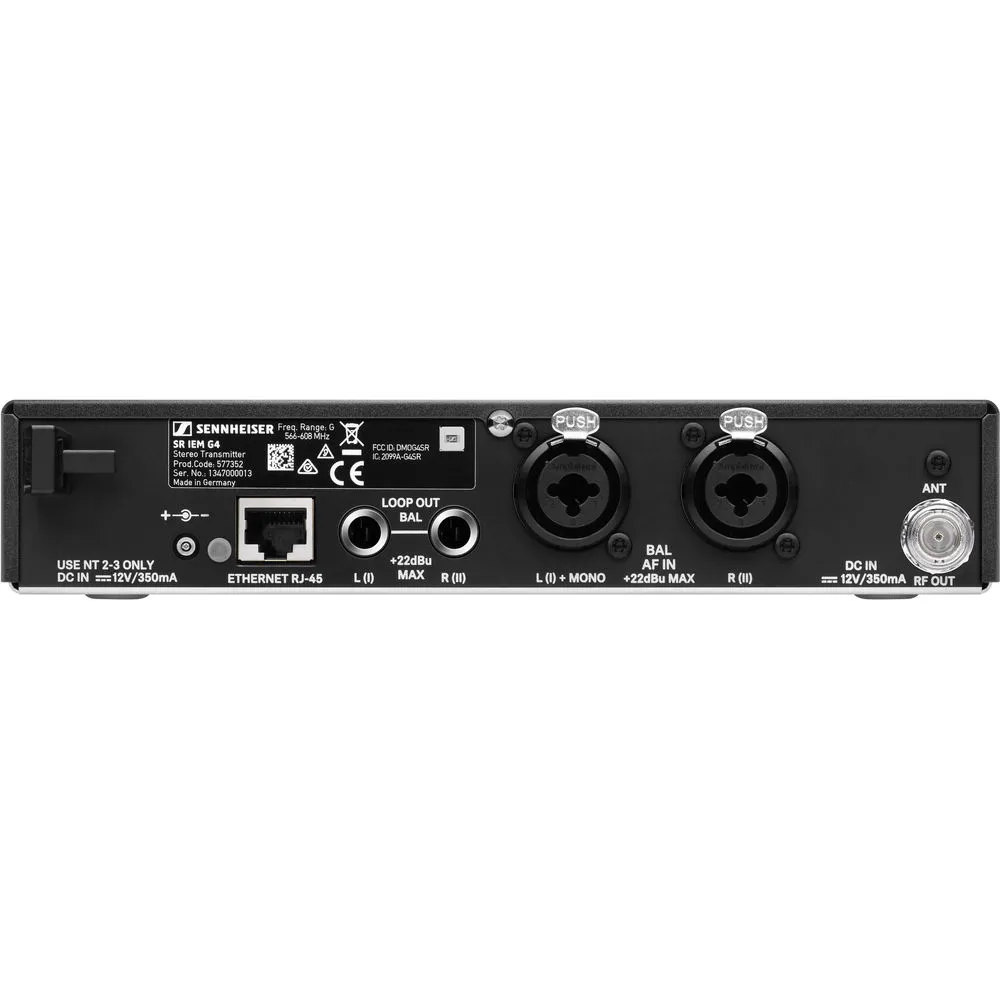

Input
2 x XLR/TRS Combo Socket (Electronically Balanced)

Max Input
+22 dBu

THD
≤ 0.9 %

Signal to Noise Ratio
> 90 dB

AF Output
1/4&#8243; / 6.3mm Stereo Jack (Balanced)

Power Supply
12 VDC

Power Consumption
Max: 350 mA

Dimensions
202 x 212 x 43 mm (Approximately)

Weight
980 g

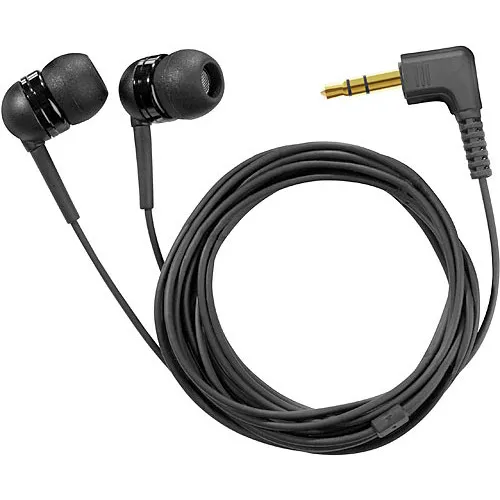

Earphones

Frequency Range
40 Hz to 20 kHz

SPL Level
118 dB SPL Maximum

Impedance
32 Ohms

Nominal Impedance
16 Ohms

Cable Length
1.4 m

Connector
1/8&#8243; / 3.5 mm (Gold Plated)
