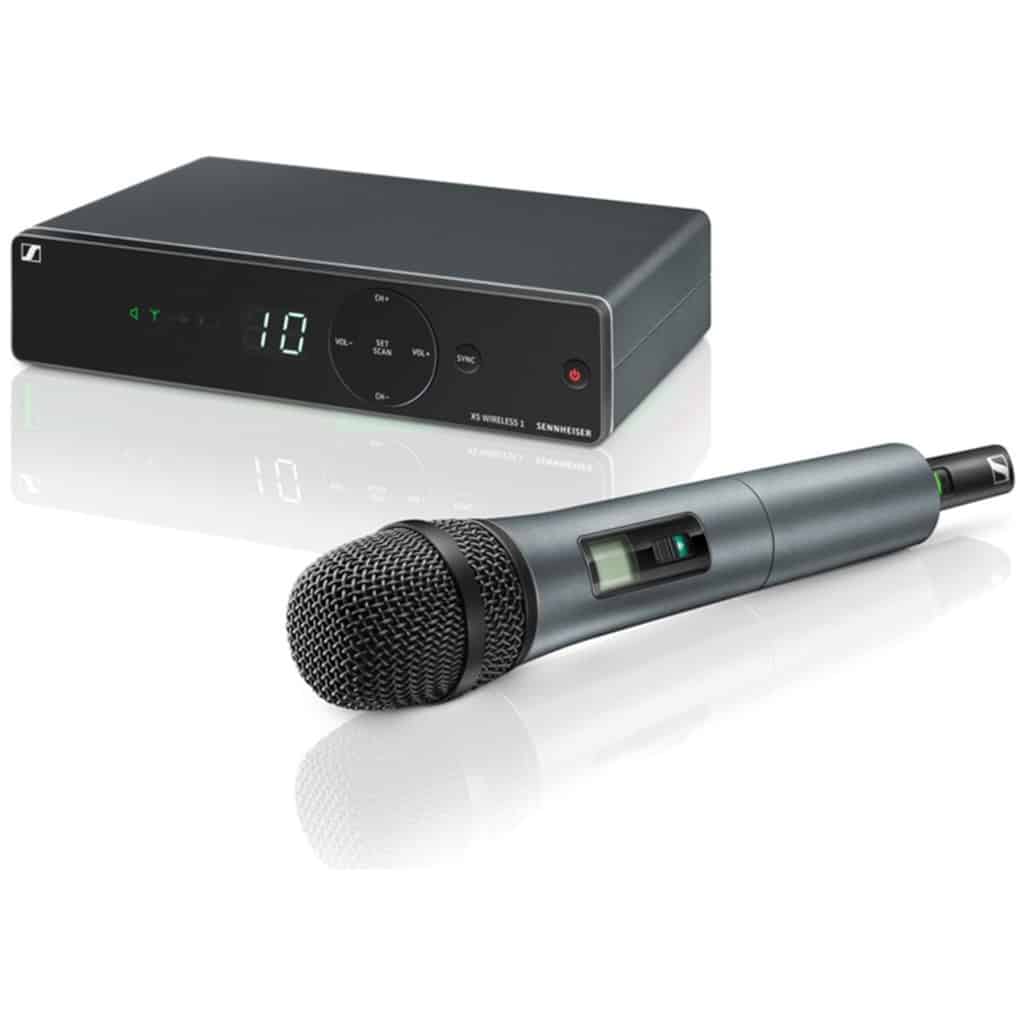

Sennheiser XSW1- 835D Wireless Handheld Microphone

Sennheiser XSW1- 835D Wireless Handheld Microphone

The Sennheiser XSW 1-835-D is an easy-to-use UHF wireless microphone system designed for singers, presenters and live performers. Part of the XS Wireless 1 range, it combines a reliable stationary receiver with Sennheiser’s renowned evolution e835 dynamic cardioid microphone capsule for clear, focused vocal reproduction.

Designed with simplicity in mind, the XSW 1-835-D features automatic frequency management and synchronization, making setup quick and straightforward. The receiver uses antenna-switching diversity reception and integrated antennas to provide stable wireless transmission.

The e835 dynamic cardioid microphone is well suited to live vocals, helping focus on the performer’s voice while reducing unwanted sound from the sides and rear. The system operates in the 794–806 MHz UHF frequency range and supports up to 10 compatible channels, depending on the operating environment and frequency regulations.

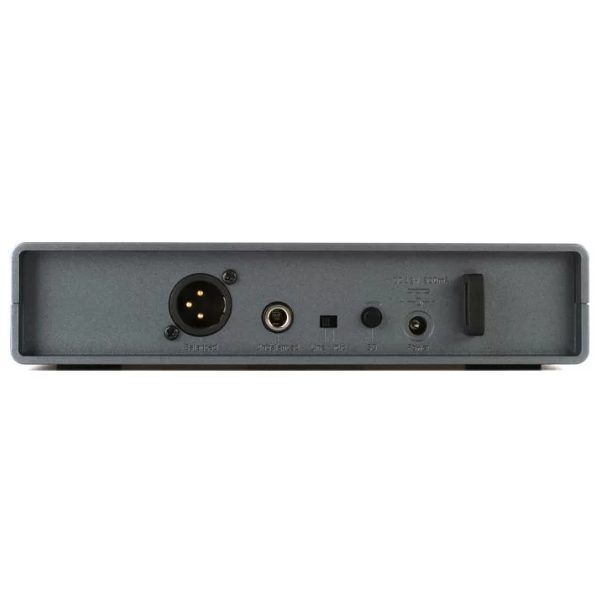

The receiver provides both balanced XLR and unbalanced 6.3 mm jack outputs, allowing it to connect easily to mixers, PA systems and other audio equipment.

Key Features

• Complete UHF wireless vocal microphone system

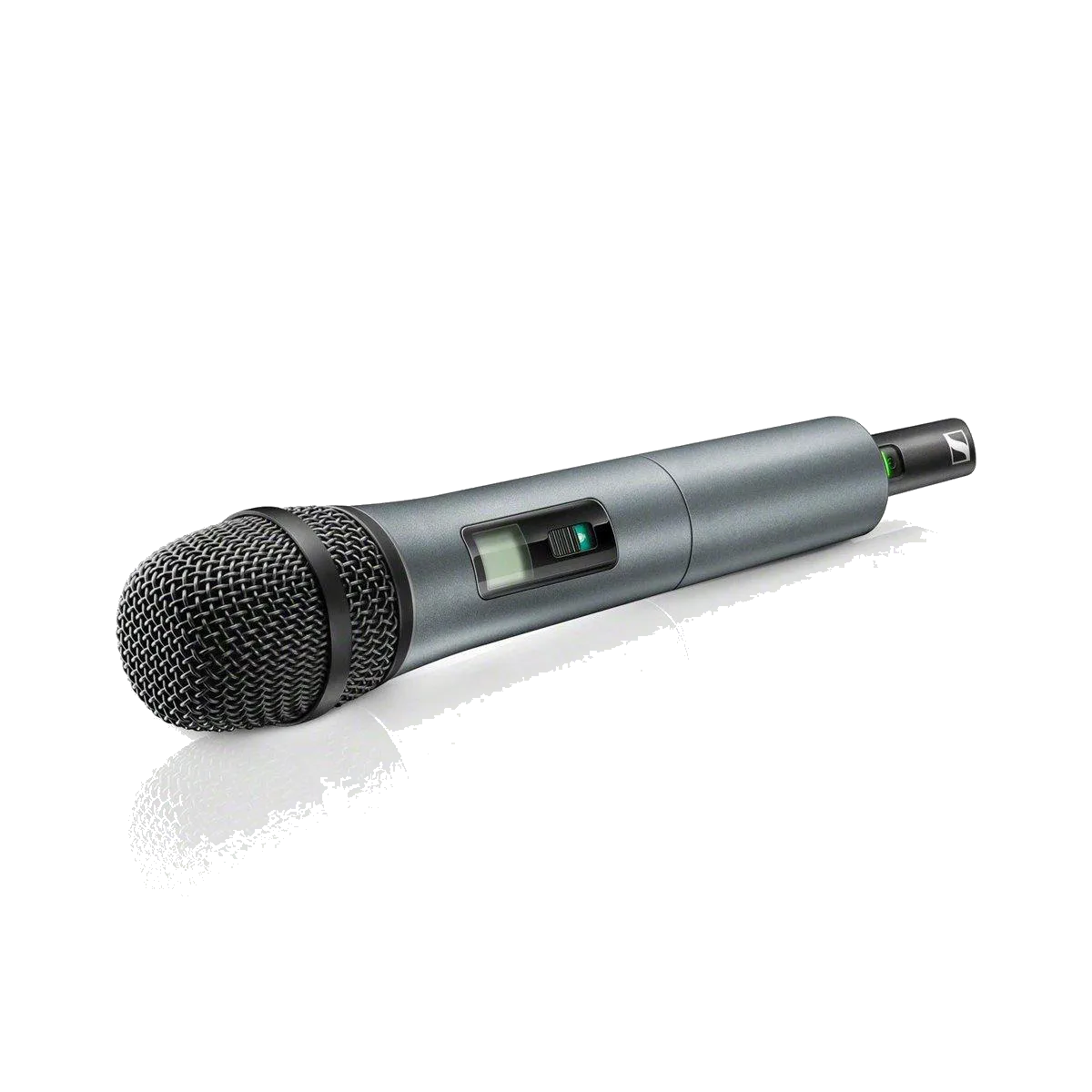

• Includes Sennheiser e835 dynamic cardioid handheld microphone

• Easy setup and operation

• Automatic frequency management and synchronization

• Antenna-switching diversity reception

• Integrated receiver antennas

• Selectable UHF frequencies

• Up to 10 compatible channels

• Balanced XLR and unbalanced 6.3 mm jack outputs

• Approximately 10 hours of transmitter battery operation

• Suitable for singers, presenters, events, churches and live sound applications

Specifications

Specification
Details

Brand
Sennheiser

Model
XSW 1-835-D

Article Number
507118

System Type
UHF Wireless Vocal System

Microphone
SKM 835-XSW Handheld Transmitter

Microphone Capsule
e835

Transducer Type
Dynamic

Polar Pattern
Cardioid

Frequency Range
794 – 806 MHz

Receiver Principle
Double Superheterodyne

Reception
Antenna-Switching Diversity

Compatible Channels
Up to 10

Audio Frequency Response
50 – 16,000 Hz (-3 dB)

Signal-to-Noise Ratio
≥103 dBA

THD
≤0.9%

Transmitter Adjustment Range
0 to -30 dB, adjustable in 10 dB steps

Battery Type
2 × AA

Battery Operating Time
Approx. 10 hours

Receiver Outputs
XLR balanced / 6.3 mm jack unbalanced

XLR Output Level
+12 dBu

Jack Output Level
+6 dBu

Receiver Dimensions
Approx. 200 × 42 × 127 mm

Receiver Weight
Approx. 340 g

Frequency Management
Automatic

Antennas
Integrated

Application
Vocals, presentations, live sound

Product Status
Discontinued
