KRK 12sHO Active Subwoofer (Shop Demo)

KRK 12sHO Active Subwoofer

The KRK12sHO brings big system performance to any studio environment where ultra-accurate bass extension and maximum sound levels are required. While subsonic frequencies are heavily implemented in some musical genres, all studios will benefit from the use of a sub to monitor this low frequency content.

12-Inch Kevlar Driver

The KRK 12sHO cabinet features a 12-inch high excursion woven Kevlar driver cone set in a curved baffle front plate designed to virtually eliminate diffraction distortion. A front-firing specially-designed port provides low-frequency extension while reducing boundary coupling and port turbulence.

Generous Frequency Range

The integrated power amplifier delivers 400w RMS performance yielding a sound pressure level of 113dB music and 116dB peak. The crossover is a fixed high-pass 80Hz with a subwoofer low-pass filter control variable from 60Hz to 160Hz, giving the KRK12sHO a generous frequency range of 29 to 160Hz to complement the sonic signature of any control room.

Broad Connectivity Options

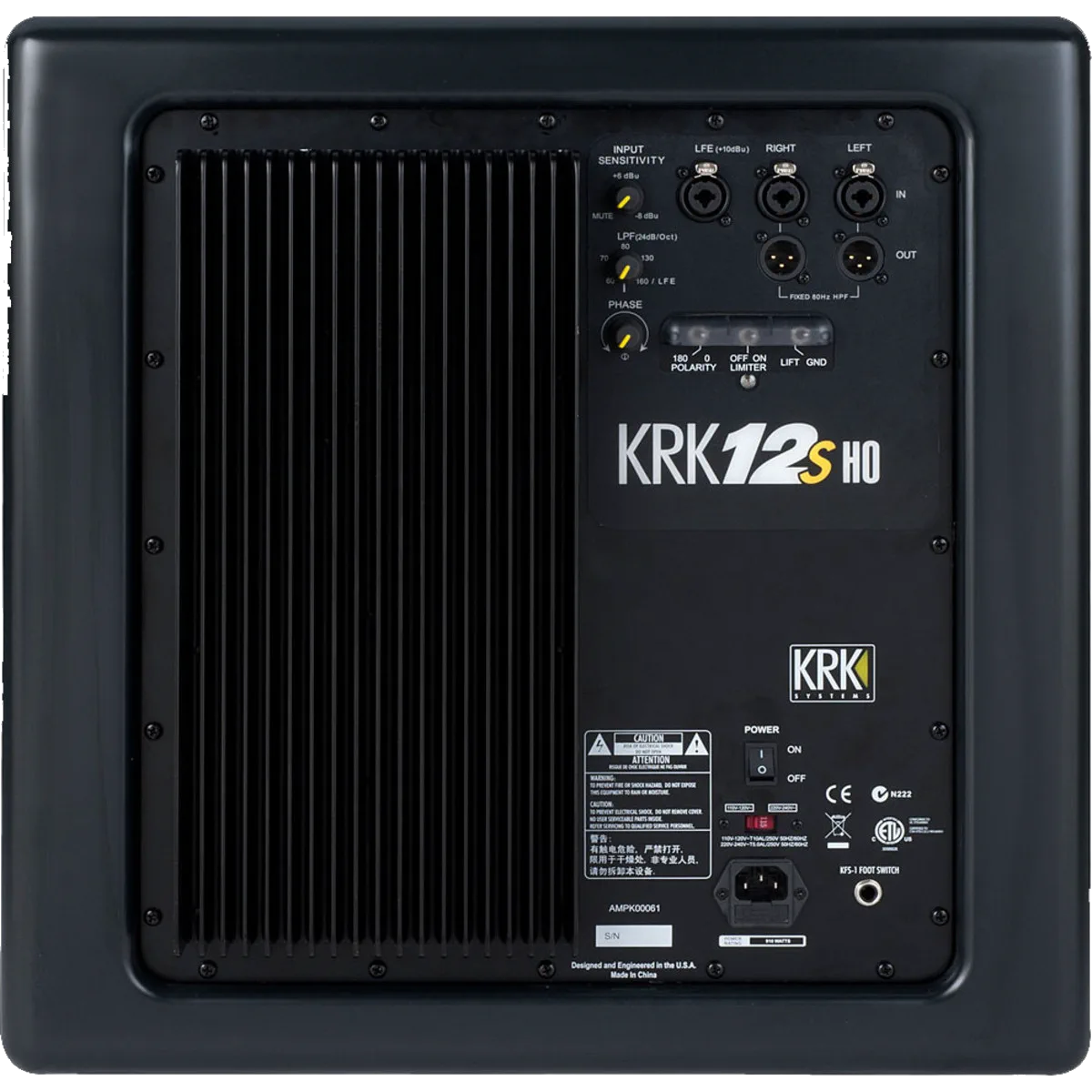

The cabinet features combi-jack inputs, thermal and overload/clip protection, LFE input gain, XLR outputs, a special subwoofer/line bypass footswitch connection, phase reverse switch and variable phase adjust capabilities.

Features

• Curved Baffle Curved front plate design virtually eliminates diffraction distortion

• Front-firing Port to provide low frequency extension while reducing boundary coupling and the unique shape is optimized to avoid port turbulence

• Bypass Footswitch Control to allow you to defeat the sub and provide full range audio to your recording monitors for use with a standard latching 1/4 inch mono footswitch

• 12″ Kevlar Driver – High Excursion woven Kevlar driver cone

• Thermal and Overload / Clip Protection to prevent damage

• Input Sensitivity on rear of unit allows a high resolution gain range, with labeled positions for MUTE, +6dBu and -8dBu

Specifications

• Configuration: Front loaded, vented subwoofer

• System type: Active Subwoofer

• Low-Frequency: 12″ woven Kevlar High Performance woofer

• Frequency Response: 29.2Hz – 60Hz – 160Hz (L/R inputs), 29.1Hz – 211Hz (LFE input)

• Max Peak SPL: 123 dB

• Amplifier Class: Class A-B

• Power Output: 400 Watts Continuous @ 1 THD+N @ 100Hz

• SNR (signal to Noise Ratio): 92dB

• Amplifier Distortion (THD+N): Input Impedance (Ohms): 10 kΩ Balanced or unbalanced

• Ground Lift: On / Off

• Low Pass Frequency: 60Hz to 160Hz

• HPF bypass: with footswitch only

• Footswitch: Included

• Phase: Rotatable Phase + Polarity Switch

• System Volume: -30dB to +6dB

• Indicators: Power, protection, limiter

• Input Connectors: Balanced XLR for Left and Right Inputs

• LFE input: Balanced XLR

• Output Connectors: Stereo Balanced XLR for left and right, full range with foot switch engaged, 80Hz HP without foot switch engaged.

• AC Power Input: Selectable 110V-120V / 220V-240V

• Enclosure Construction: 18mm and 36mm reinforced MDF

• Finish: Textured Paint

• Port Configuration: Front Firing Quad Concentric Slot Ports

• Finish: Textured Paint

• Grille: N/A

• Dimensions (H x W x D): 20″ (508 mm) x 20″ (508 mm) x 22.48″ (571mm)

• Weight: 109.7 Lbs. (49.7 Kg.)

• Accessories: Footswitch for bypass operation, with remote indication of bypass (clip and limit TBD), Cable for footswitch (5m), Feet – Rubber and Spikes, User Guide / Warranty
