Klark Teknik DI 10A Active DI Box

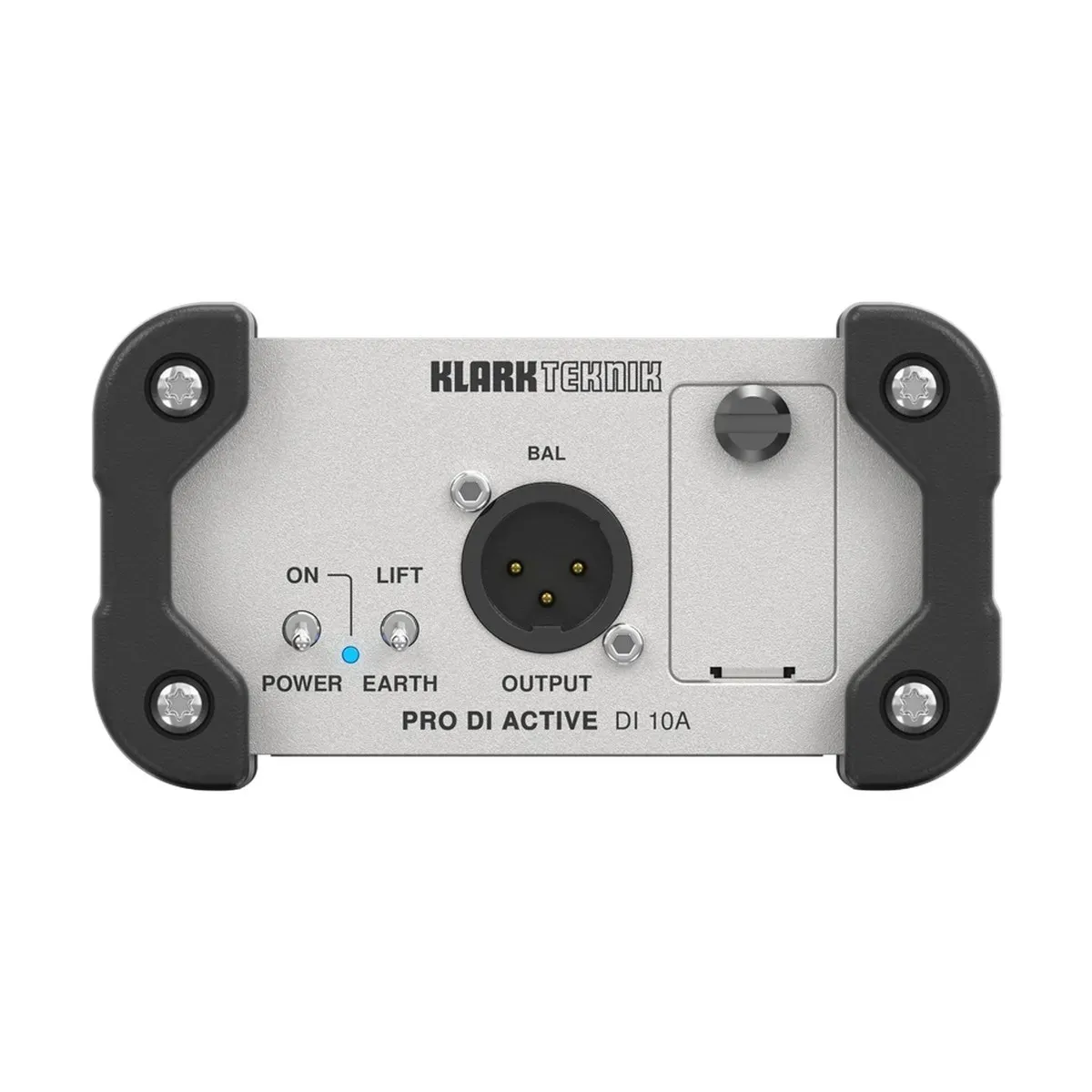

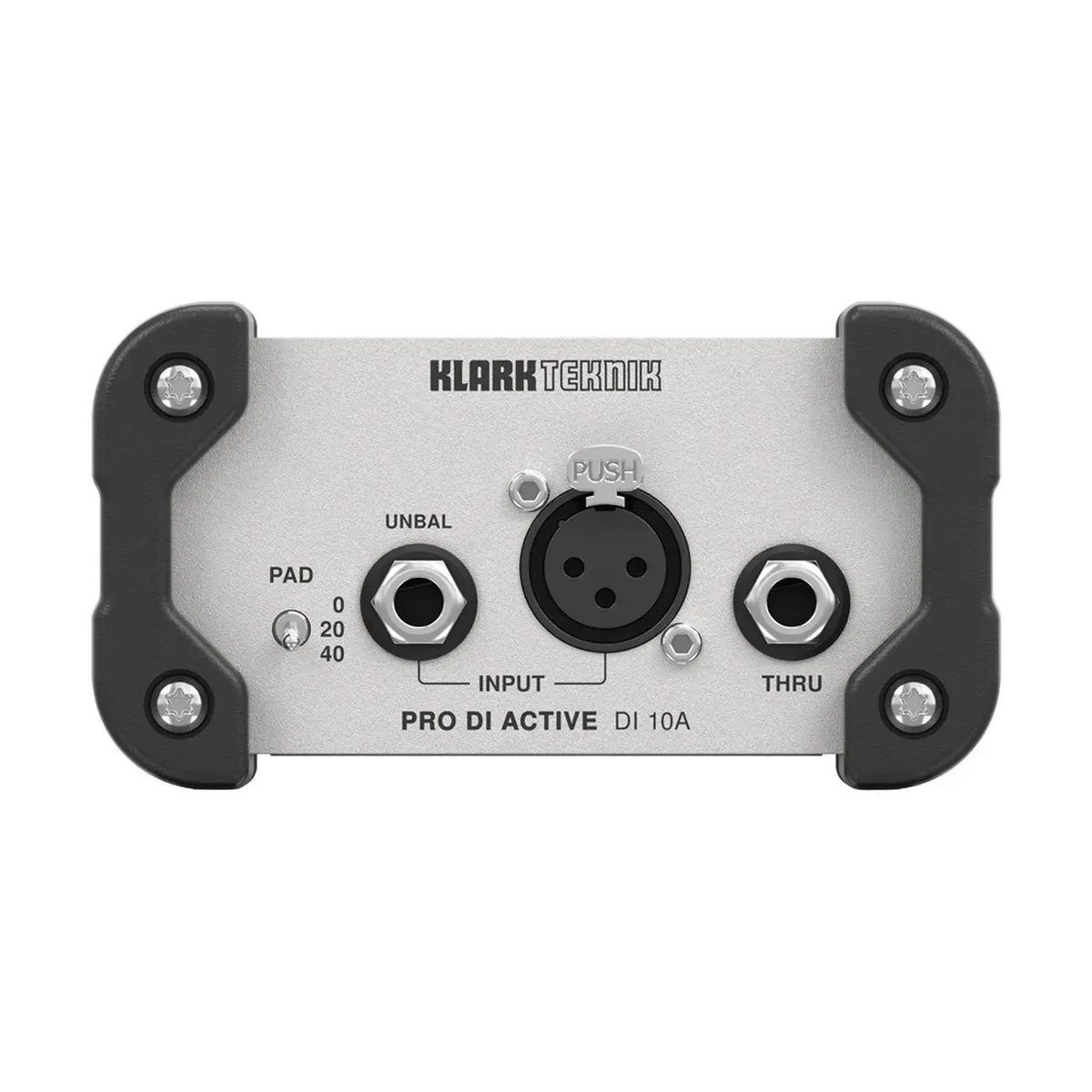

The Klark Teknik DI 10A Active DI Box allows you to connect media players, keyboards and a variety of other stereo sources to front of house mixing consoles. The custom-built MIDAS transformer ensures the highest possible signal integrity and the high headroom design provides superior audio quality. The DI 10A DI Box is powered via either +48V phantom power or an optional internal 9V backup battery.The front panel offers switchable attenuation for guitar, line and speaker levels, while the rear provides an Earth Lift switch to eliminate ground loop problems. Featuring 1/4'' TS and XLR input connectors, along with a balanced XLR output connector, the Klark Teknik DI 10A is perfect for professional audio and multimedia applications.

Features

• Active DI Box for general purpose and multimedia applications

• Custom-built MIDAS transformer for highest signal integrity

• High headroom design offers superior sound quality

• Powered from console +48V phantom or internal battery (not included)

• Automatic switchover to battery if phantom power fails

• Matches the level and impedance with unity gain without loading the source

• Switchable input attenuation for guitar, line and speaker levels

• High quality Neutrik XLR and high impedance 1/4'' TRS connectors

• Earth Lift switch eliminates ground loop problems

• Fully transformer-isolated design ensures electrical separation

• Ultra-low noise and ultra-linear system for highest signal integrity

• Aluminium extrusion casing with protective rubber corners

• Compact and rugged design

• Designed and engineered in the U.K.
