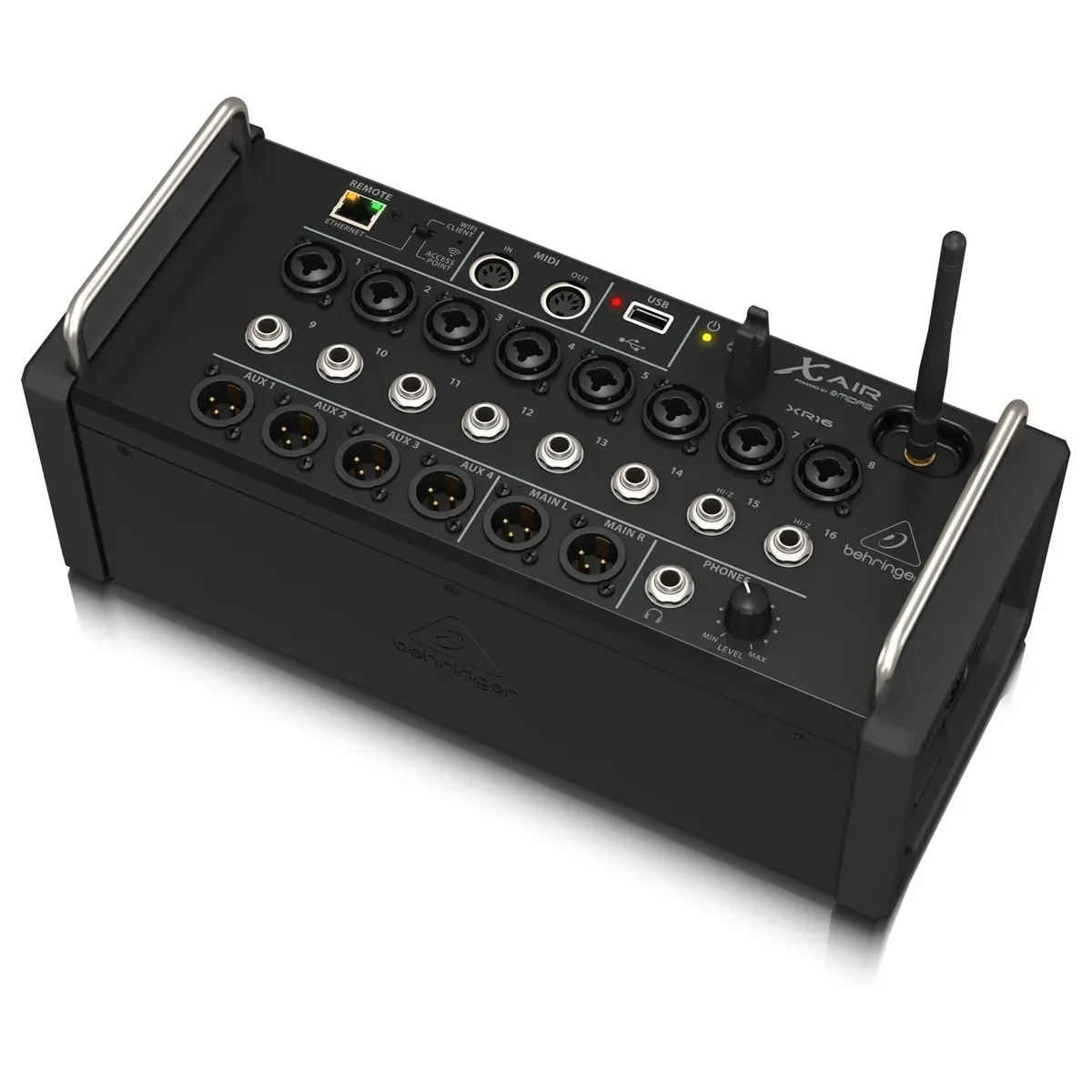

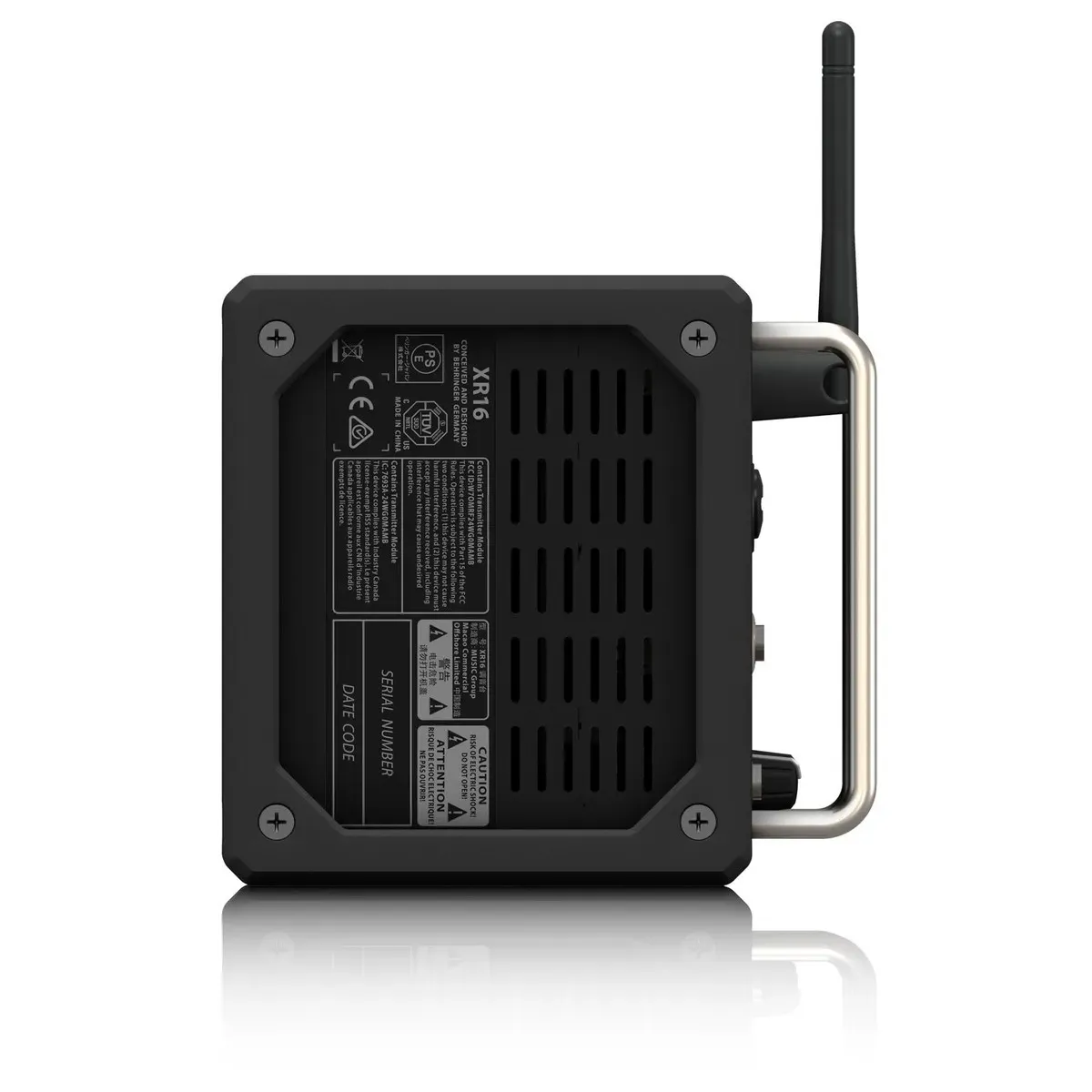

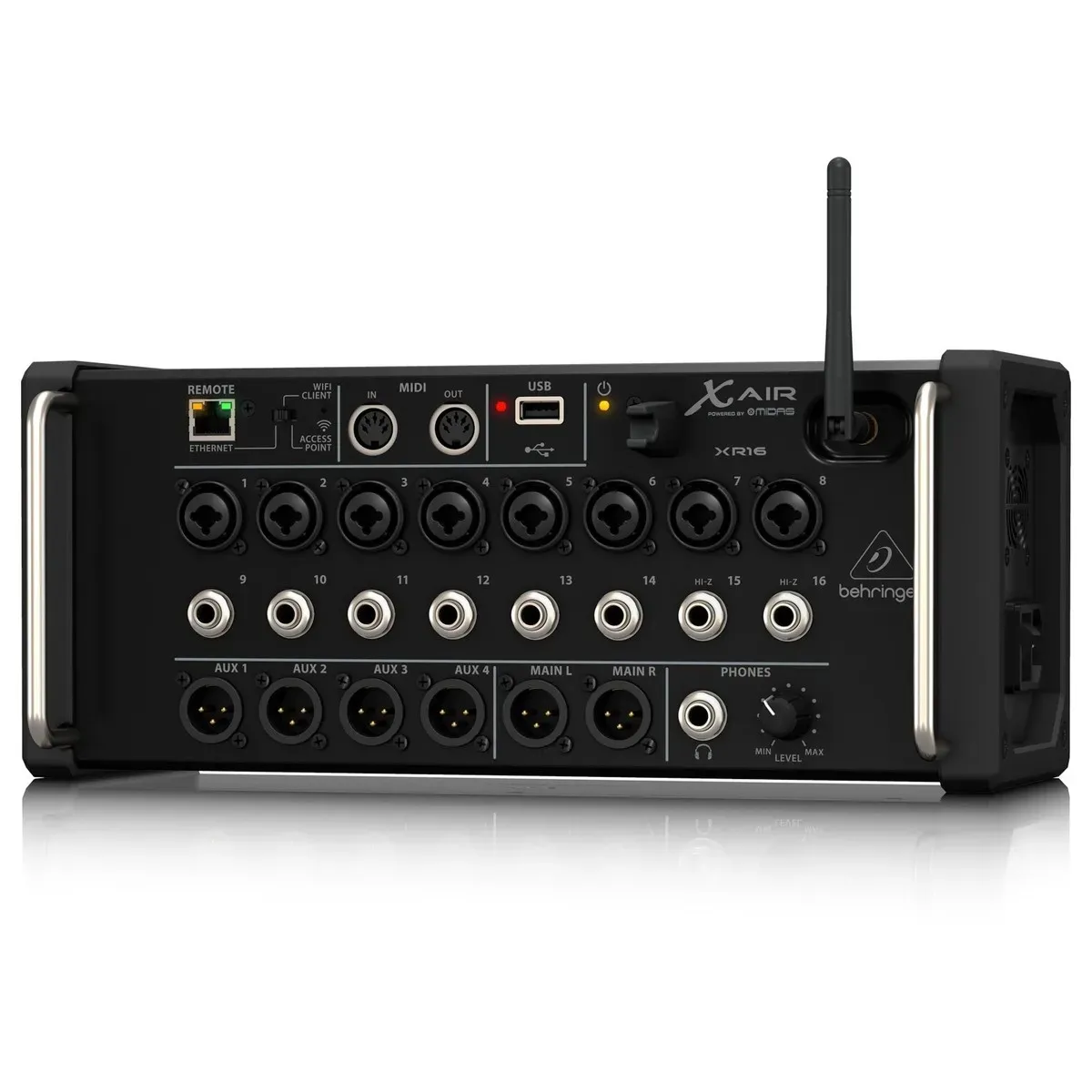

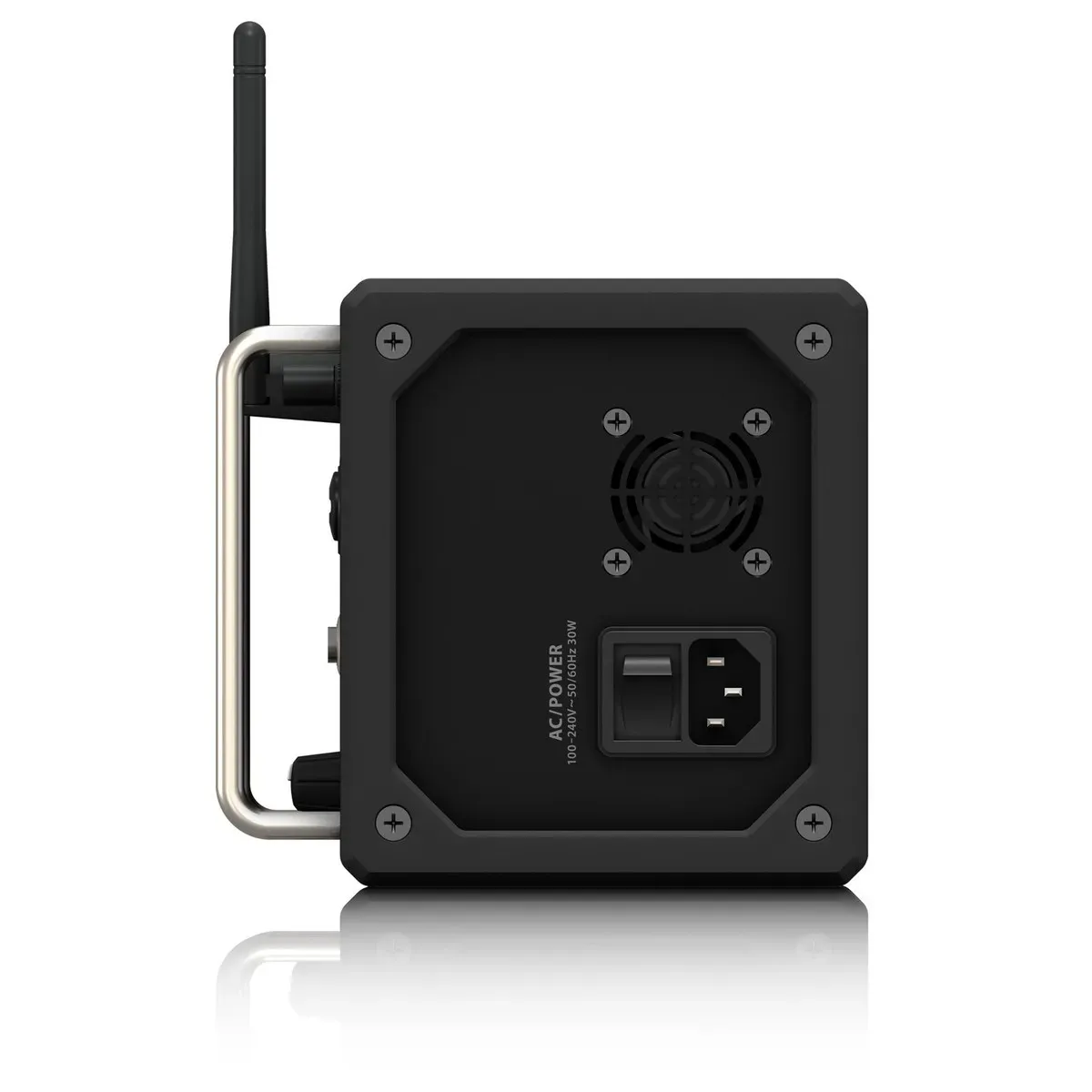

Behringer X AIR XR16 16-Channel Digital Mixer

Behringer X AIR XR16 16-Channel Digital Mixer

The Behringer X AIR XR16 16-Channel Digital Mixer is ideal for both studio and live applications. Featuring 8 Midas-designed preamps, built-in WiFi, and USB stereo recording, it provides professional-grade sound and flexibility. The XR16 includes advanced features like auto-mixing, a 100-band RTA, and a robust FX engine, making it a powerful, portable mixing solution for any audio environment.

Audiophile sound with Midas preamps

The Behringer X AIR XR16 mixer is equipped with eight award-winning, fully programmable Midas-designed mic preamps, known for their superior sound quality. These preamps ensure pristine audio capture, making the XR16 perfect for both live performances and studio recordings.

Integrated WiFi for ultimate mobility

The XR16 comes with a built-in tri-mode WiFi router, allowing direct control of the mixer's functions without needing an external router. This feature gives you the freedom to move around the venue and adjust settings from anywhere using an iPad, Android tablet, or laptop. The mixer supports Access Point mode for direct connections, WiFi Client mode to join an existing network, and wired connections via Ethernet.

USB connectivity and stereo recording

The front panel USB type-A connector enables uncompressed stereo WAV recording and playback. This allows you to capture live stereo tracks directly to a USB flash drive or hard drive, making it easy to record performances and playback background music during breaks.

Advanced auto-mixing and FX engines

The XR16 features revolutionary Dugan-style auto-mixing technology that automatically manages microphone gain, ideal for applications with multiple microphones like panel discussions and press conferences. The mixer includes the award-winning X32 effects rack, offering four stereo FX slots with high-end simulations of classic studio effects such as the Lexicon 480L and PCM70.

Precise EQ with 100-band RTA

The built-in 100-band Real Time Analyzer (RTA) provides detailed visual feedback for all channel and bus EQs, enabling precise frequency adjustments. The RTA can be displayed on top of the 31-band graphic EQs in the main and aux buses, making it easy to monitor and control frequencies.

Comprehensive connectivity and control

The XR16 offers 4 aux buses and main LR outputs, each with inserts, full dynamics processing, and 6-band parametric or 31-band graphic EQ. It includes 2 TRS aux outputs, 2 XLR main outputs, and a headphone connector. The mixer also supports MIDI In/Out for control via external MIDI devices, including the Mackie Control protocol.

Flexible apps and software

Free iOS, Android, PC/Mac, and Linux apps are available for remote operation via Ethernet, LAN, or WiFi. The X AIR EDIT software for PC/Mac/Linux allows for comprehensive control of the mixer, including routing and FX editing. The X AIR apps for iPad and Android provide full access to mixing functions, making it easy to adjust settings from mobile devices.

Features

• iPad/Android tablet controlled 16-input digital mixer for studio and live applications

• 8 award-winning MIDAS-designed, fully programmable mic preamps ensure audiophile sound quality

• Built-in Tri-Mode Wifi router for direct operation - no need for external routers

• USB connector for uncompressed stereo WAV recording and playback

• Revolutionary Dugan-style Auto-Mixing automatically manages microphone gain sharing

• Award-winning X32 effects rack with 4 stereo FX slots including high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc

• 100-band Real Time Analyzer (RTA) for all channel and bus EQs

• Rack ears and protection bumpers included for flexible rack and on-stage applications

• 6 aux and main LR buses with inserts, full dynamics processing and 6-band parametric or 31-band graphic EQ

• 4 XLR aux outputs and 2 XLR main outputs plus phones connector

• 40-bit floating-point DSP features ''unlimited'' dynamic range with no internal overload and near-zero overall latency

• Free iOS, Android and PC/Mac/Linux apps available for remote operation via Ethernet, LAN or WiFi

• MIDI In/Out allows controlling the mixer via MIDI equipment (including Mackie Control protocol)

• Internal switch-mode power supply for noise-free audio and low power consumption

• Designed and engineered in Germany

Specifications

• Power Consumption: 30W

• Switch-Mode Power Supply: Autorange 100-240V (50Hz/60Hz)

• Rack Size: 3U

• Dimensions: 333mm x 149mm x 140mm / 13.1'' x 5.9'' x 5.5''

• Weight: 3kg / 6.6lbs

Processing

• Processing Channels:

• 16 Input Channels

• 4 FX Return Channels

• 6 Aux Buses

• 1 Stereo USB Return Channel

• Main LR

• Internal Effects Engines: 4 True Stereo

• Signal Processing: 40-Bit Floating Point

• A/D-D/A Conversion: 24-Bit @ 44.1kHz/48kHz, 114dB Dynamic Range

• Cirrus Logic A/D CS5368, D/A CS4385

• Analog I/O Latency: 0.8ms

Connectors

• Programmable Mic Preamps: 8 x XLR/TRS Combo Jacks, Balanced

• Preamps: Designed by MIDAS

• Line/Aux Inputs: 8 x TRS, Balanced

• Main Outputs: 2 x XLR, Balanced

• Aux Outputs: 4 x XLR, Balanced

• Phones Output: 1 x TRS

• MIDI I/O: 1/1 DIN

• Ethernet: 1 x RJ45

• Audio/MIDI Interface: 1 x USB Type A

WLAN Module

• Antenna: External, SMA Connector, 50?

• Access Point: Maximum 4

• Frequency Range: 2,412MHz - 2,462MHz

• WLAN Channels: 1-11

• Maximum Output Power: 19dBm (802.11 b) / 18dBm (802.11 g)
