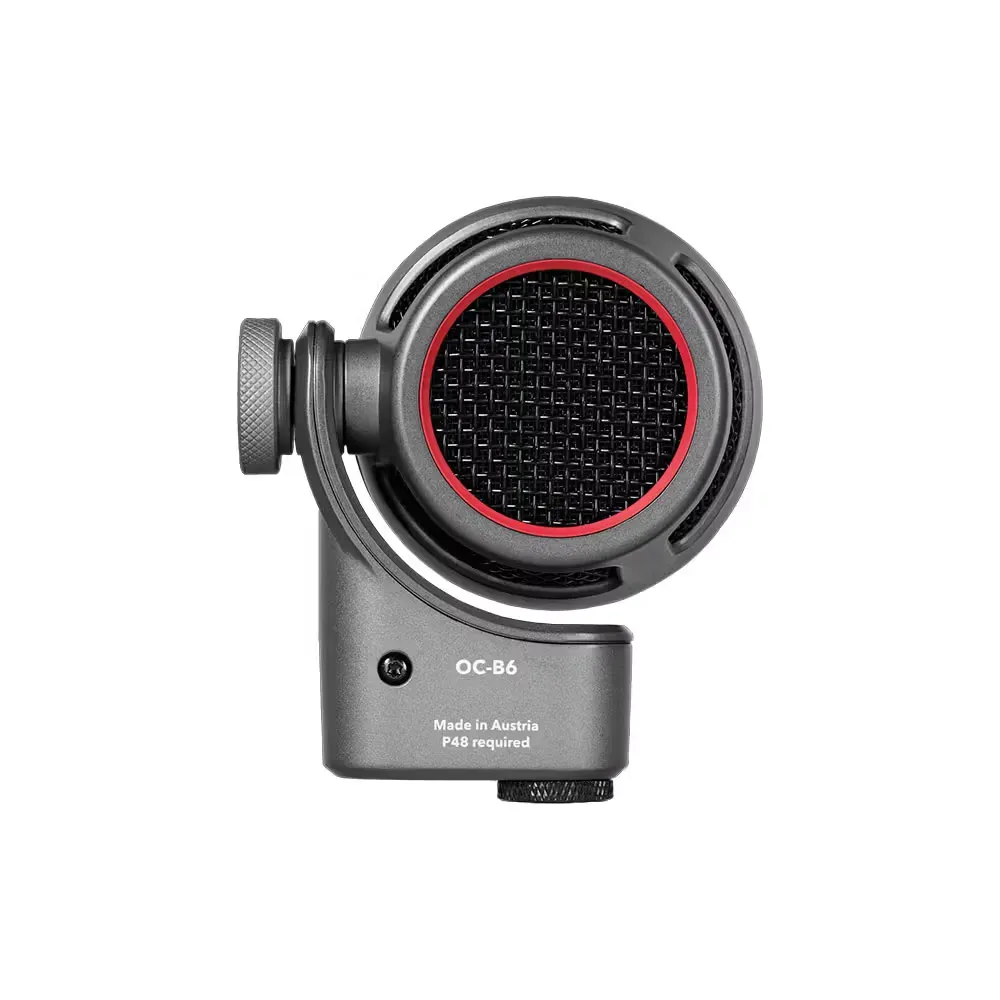

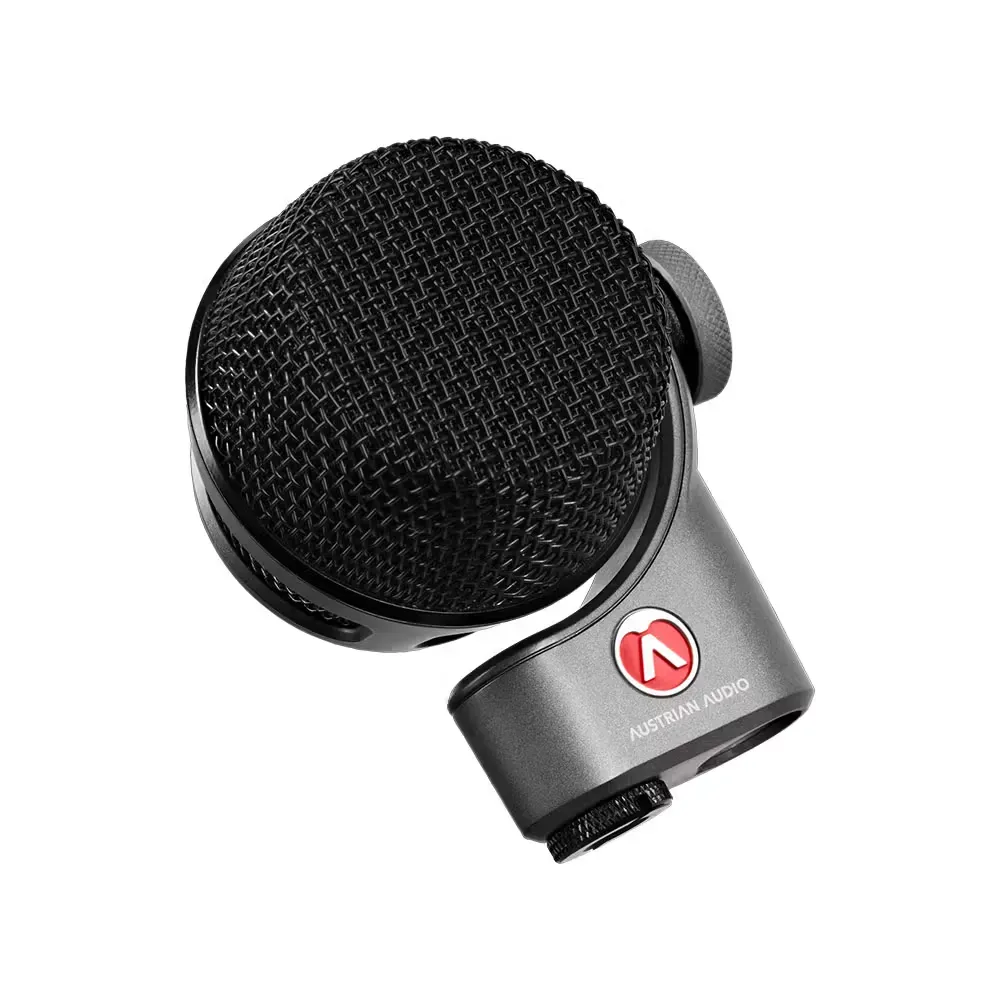

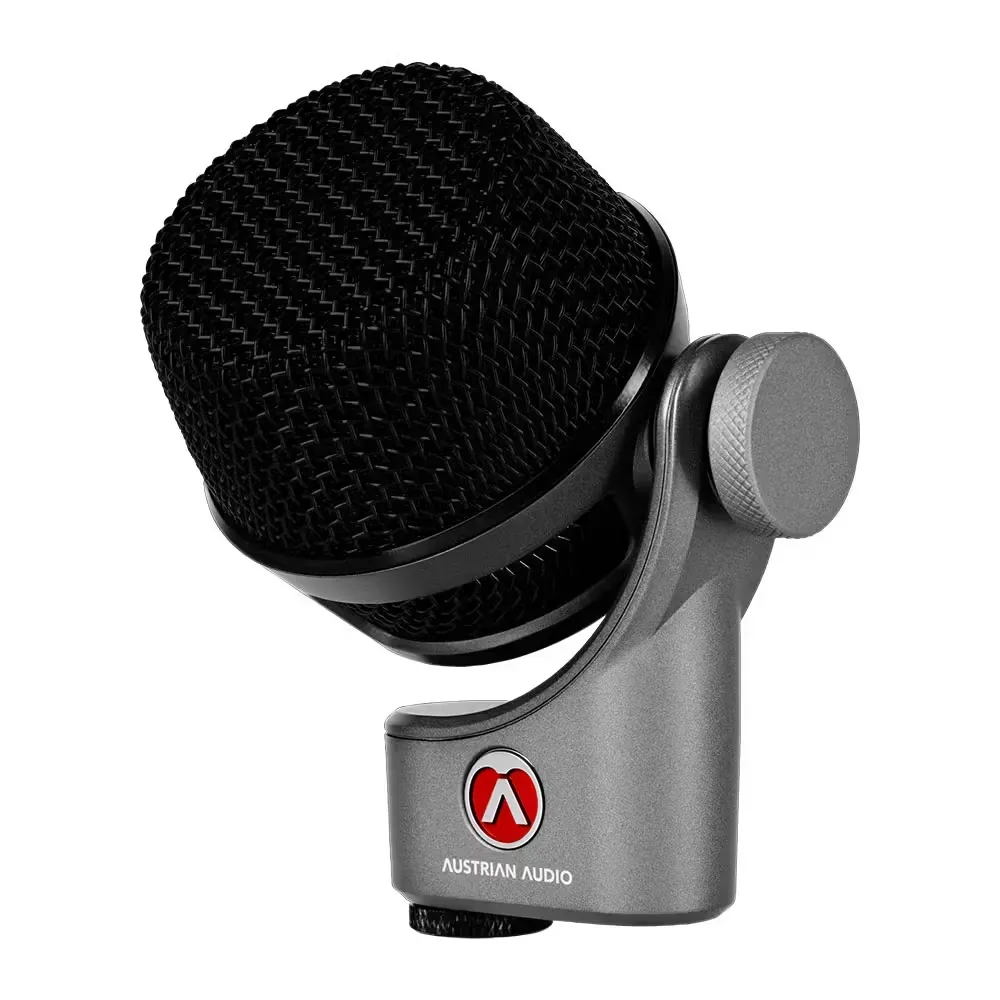

Austrian Audio OC-B6 Bass Drum Microphone

Austrian Audio OC-B6 Bass Drum Microphone

The Austrian Audio OC-B6 large-diaphragm condenser bass drum microphone delivers a transparent sound that adapts to any studio, stage, and bass drum. Centered around Austrian Audio’s CKR6-B capsule, which was specifically designed to handle high SPL, the OC-B6 sports a sleek and streamlined build with a 220-degree rotatable head for optimal mic placement at any position and on any drum set. Built to Austrian Audio's rigid construction and performance standards, rest assured that the OC-B6 is ready to track each studio session, mic every live set, and even tackle the rigors of the road.

Be loud and proud

The heart of the OC-B6 is Austrian Audio's CKR6-B capsule. This 1-inch, edge-contacted, large-diaphragm condenser capsule is handmade in Vienna and features an Austrian Audio-patented ceramic isolator with an increased distance between the diaphragm and the back plate. These features allow the CKR6-B capsule to deftly handle a genuinely amazing amount of SPL without distorting — greater than 170dB! Additionally, the actual sound of the OC-B6 mic as a whole is clear and transparent, without any unwanted coloration, and a subsonic filter at 25Hz takes care of any bottom-end rumble. This lets you shape your kick drum sound as you please, ensuring the perfect tone for any recording or performance.

Placement as you see fit

With its 220-degree rotating head and compact design, you can use the OC-B6 in even the tightest of situations and at any position, including inside the drum, outside the drum, or directly at the port. What's more, the OC-B6 has its own built-in mic thread, so you don't even need a separate mic clip.

The new Vienna classics

Carrying on the rich legacy of high-end Viennese microphone design into the modern era, Austrian Audio is driven by an engineering team with over 300 years of combined experience. Their motto: “Making Passion Heard.” Their mission: to design and manufacture a new generation of recording tools that embrace cutting-edge technologies and sonic excellence while honoring Vienna’s rich musical heritage. That vision is realized in Austrian Audio’s proprietary, handcrafted CKR6-B large-diaphragm capsule, which is used in the company’s excellent OC-B6 condenser microphone. We are proud to bring you Austrian Audio’s distinguished lineup of fine microphones and accessories.

Austrian Audio OC-B6 Features:

• Large-diaphragm condenser bass drum mic with exceptional SPL handling, crystal-clear sound, and a compact design

• Built around the 1-in. edge-contacted large-diaphragm condenser CKR6-B capsule, with patented ceramic isolator and increased distance between diaphragm and back plate

• Amazing SPL handling of >170dB with no distortion

• Transparent sound avoids adding unwanted coloration or pre-EQ, letting you shape your bass drum sound for recording or live performance

• 220° rotating head and overall compact design allow for easy positioning inside/outside the drum or right at the port

• Built-in mic thread means you don't need a separate mic clip to mount it

• Cardioid polar pattern provides excellent off-axis rejection

• 18Hz–20kHz frequency range with subsonic filter at 25Hz that removes low-end mud and rumble

• Comes with its own carrying case

Tech Specs

• Microphone Type:Condenser

• Polar Pattern:Cardioid

• Diaphragm Size:1" (25.4mm)

• Frequency Range:18Hz-20kHz

• Max SPL:170dB

• Output Impedance:108 ohms

• Sensitivity:0.8mV/Pa

• Connector:XLR

• Features:220° Rotatable Head

• Color:Black

• Power Source:48V Phantom Power

• Dimensions:3.6" x 3.22" x 2.24"

• Weight:0.61 lbs.

• Included Accessories:TA2 Thread Adapter, MSC3 Soft Case
