dbx DI1 Active Direct Box

dbx DI1 Active Direct Box

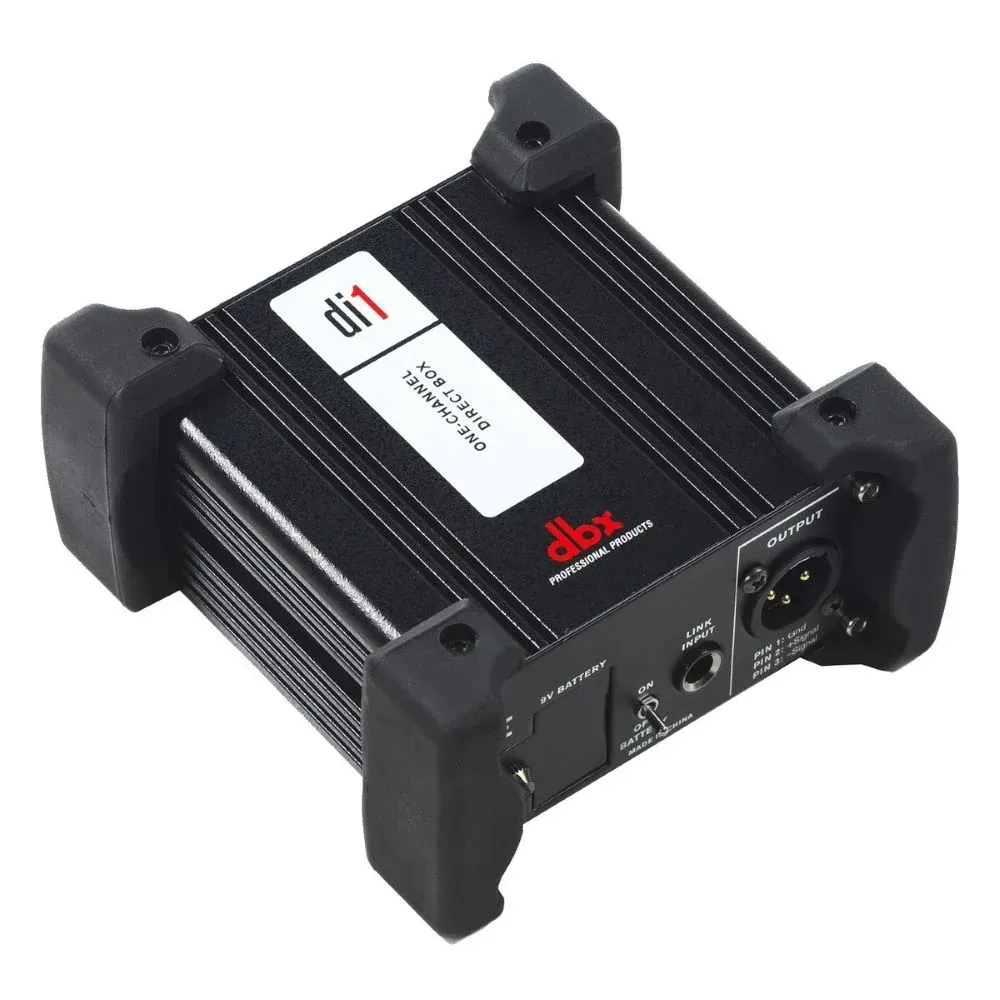

The dbx DI1 Active Direct Box is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.

Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.

Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.

Recommended for: Studio, Tour, Portable.

dbx Active Direct Box Features:

• Level and impedance matching function

• Output impedance: > 600 Ohms

• Signal pass through connector

• Output connector: XLR balanced

• Battery LED indicator

• Distortion: (THD) < 0.005% at 1kHz, 0dBu

• Phantom power LED indicator

• Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)

• Output Noise: <-100dB unweighted

• TS and XLR inputs and outputs

• Frequency response: 10Hz to 70kHz, +0dB/-3dB

• Attenuation control

• Phantom Power: +18 volts DC to +48 volts DC

• Ground lift switch

• Main/Standby: 9V battery

• Input Impedance: >250k Ohm

• Metal Chassis
