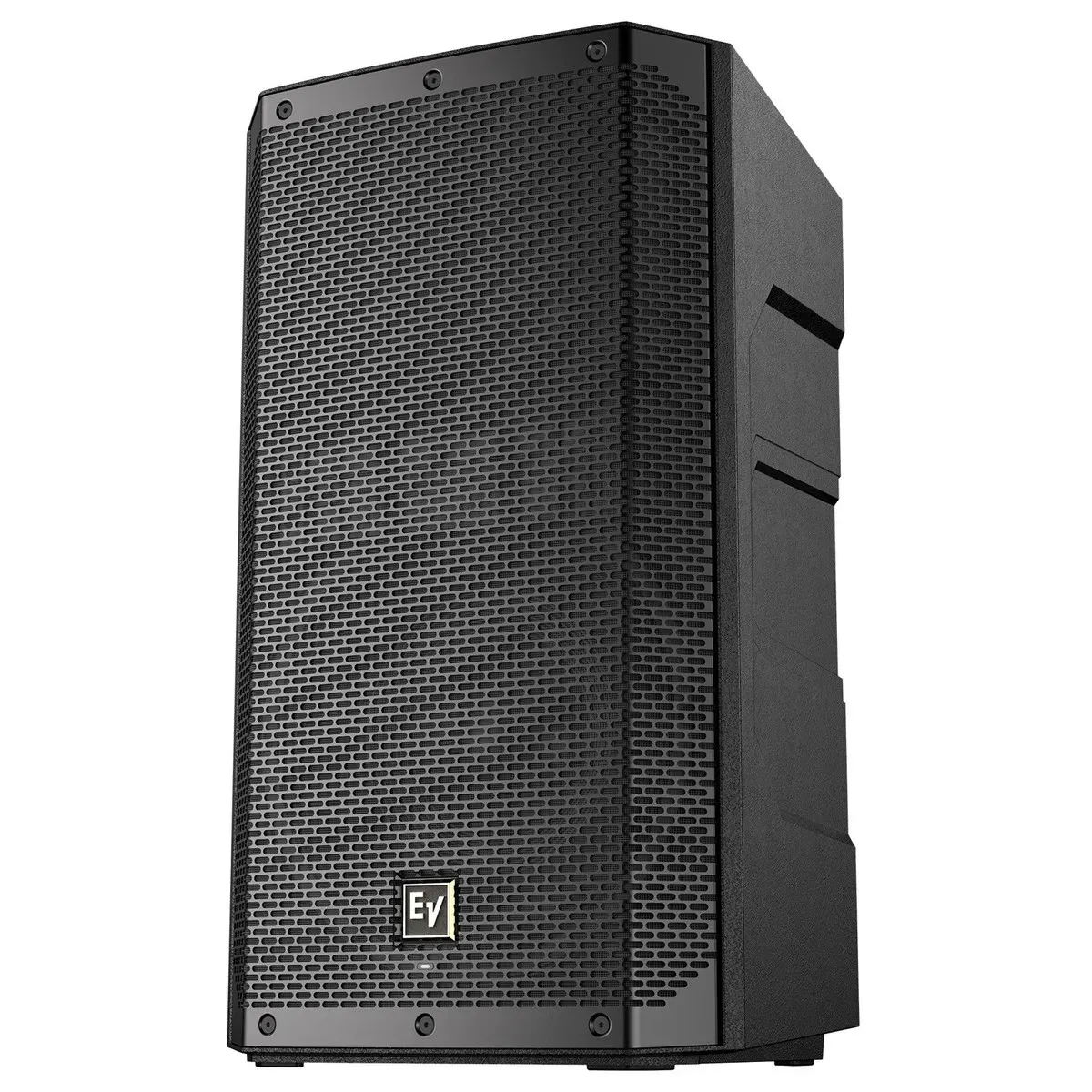

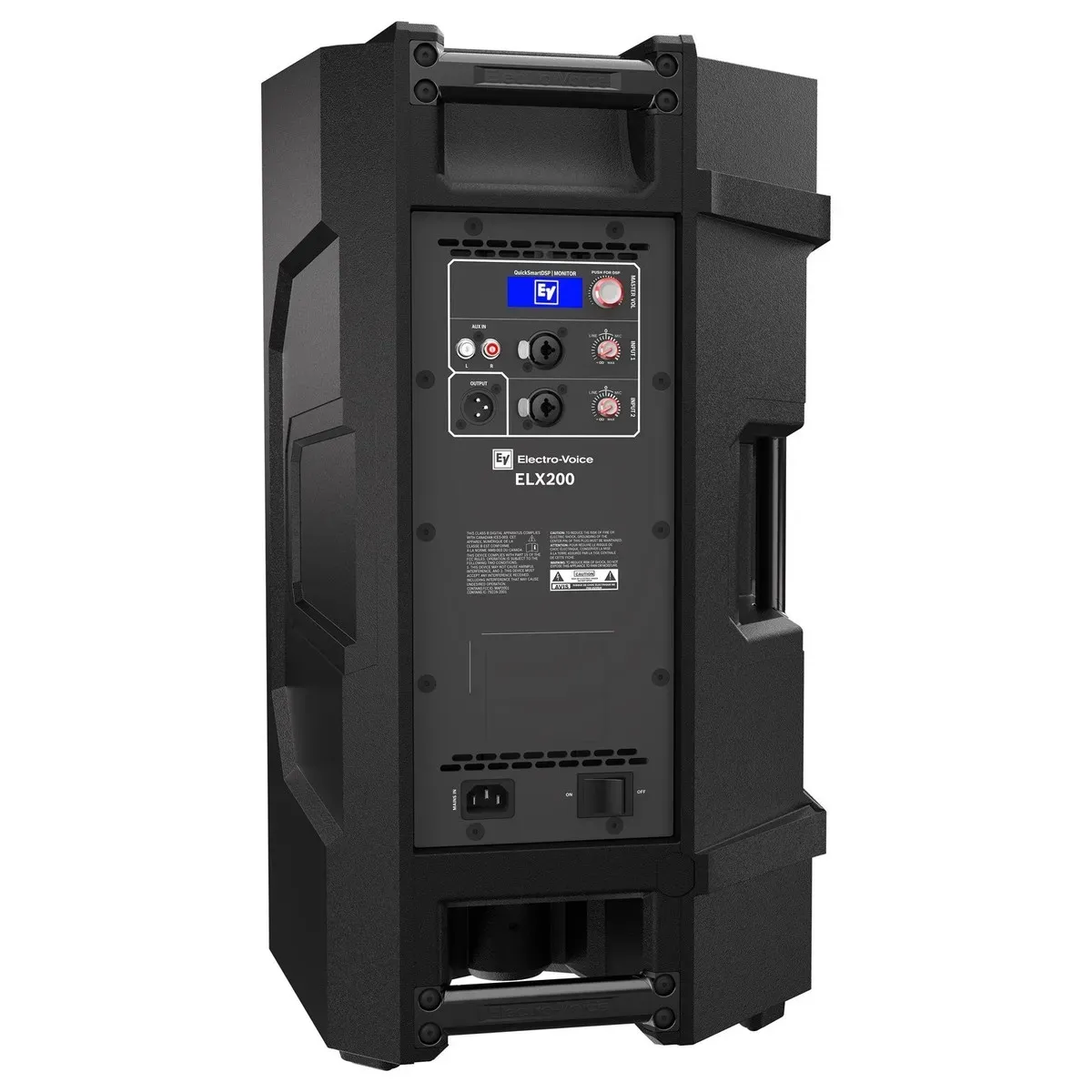

Electro-Voice ELX200-12P 12 inch Powered Speaker

Electro-Voice ELX200-12P 12 inch Powered Speaker

Electro-Voice ELX200 series powered speakers are engineered to deliver greater functionality than their predecessors in lighter-weight, ultra-portable form factors with superb build quality and elegant design. Live performers, DJs, and production companies will be amazed by the value packed into each ELX200 unit. This ELX200 12-inch 2-way powered speaker consists of a strong, internally reinforced composite cabinet with an ergonomically sound 3-handle design and M10 suspension points, an anteriorly placed Signal Synchronized Transducer (SST) waveguide that time aligns the woofer and the tweeter, and app-controllable QuickSmartDSP for best-in-class processing.

Heavyweight talent in a portable form

ELX200 series speakers deliver heavyweight sonics, thanks to extra-efficient, low-distortion Class-D amplification. But don't worry; load in and load out will be a cinch, thanks to light but strong composite cabinet construction with internal reinforcement. These cabinets also feature a 3-handle design that gives you comfortable carry options to lessen strain. And If you'll be flying your speakers, it's easy to remove the covers on the M10 suspension points in order to install forged eyebolts.

Complex DSP made simple

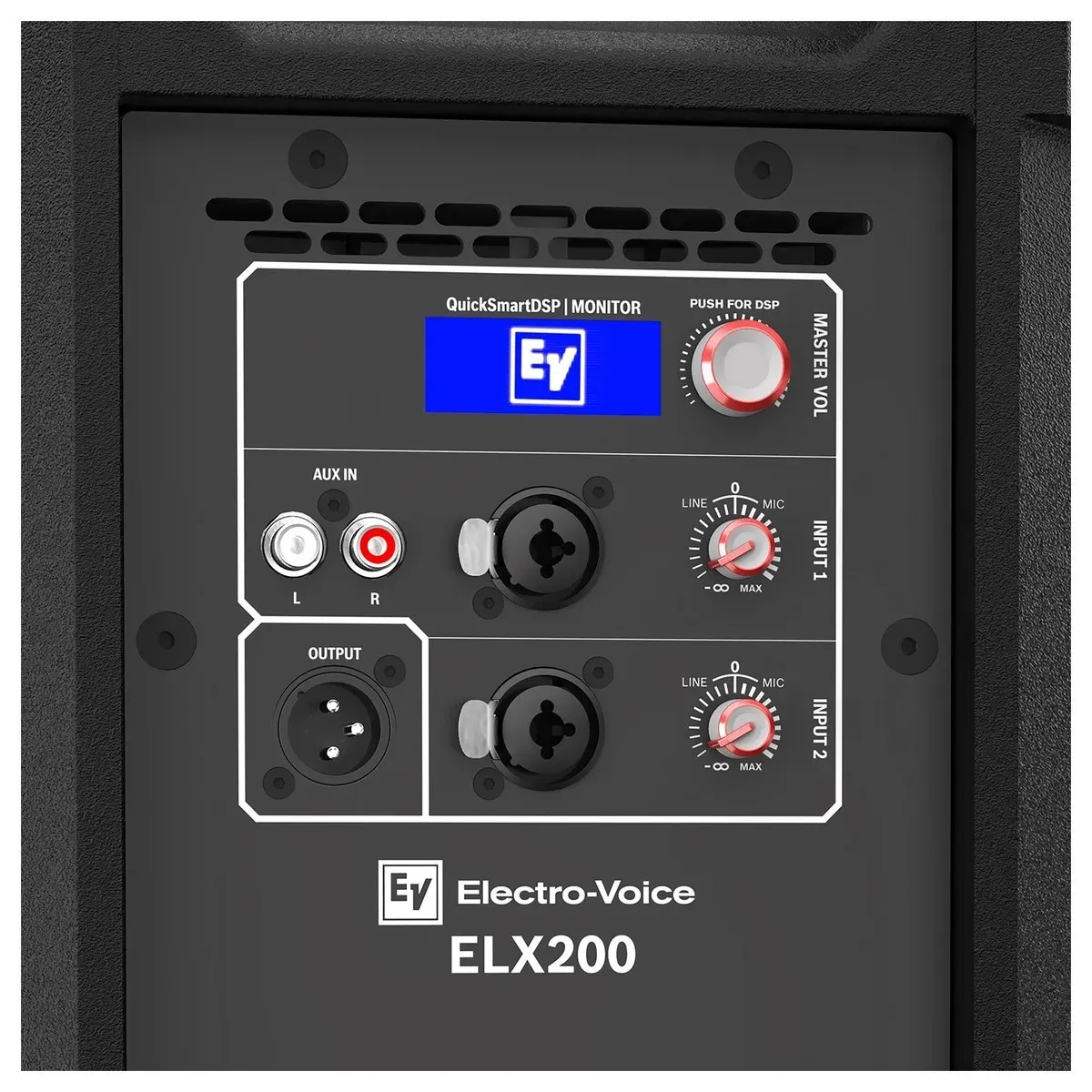

Digital signal processing (DSP) has been around for a while now — so what makes Electro-Voice QuickSmartDSP special? For one thing, it embodies best-in-class processing power, giving you the highest-quality digital audio available to wow your audience. Plus, all the massive signal-shaping prowess of QuickSmartDSP is accessible through a single knob and an integrated liquid crystal display (LCD). Its four presets (Music, Live, Speech, and Club) are powerful and intuitively arranged within the menu, and they simply sound great, whether you're the FOH engineer for a band, belting out your original tunes, running sound for a presenter, or spinning a killer set under the lights. QuickSmartDSP also gives you five user-programmable presets, crossover system matching for sub/top applications, input level control with precise metering, and of course Master volume control.

Tomorrow's functionality — today

Have you been looking for mobile device management of your DSP? Via wireless Bluetooth technology, the QuickSmartMobile app lets you configure up to six ELX200 loudspeakers at the same time — from out front, where you can actually hear what the audience hears — ensuring your sound check results in optimal audio quality. It's DSP accessibility is ahead of its time, and for you, it means quick, simple, precise, and mobile sound control.

SST design for enhanced acoustics

By positioning the ELX200 speaker's horn more anteriorly than in conventional designs, the LF and HF transducers are more accurately time-aligned, resulting in enhanced sound quality. This design, called Signal Synchronized Transducer (SST), also allows for a more compact enclosure, a larger waveguide for better control over the dispersion pattern, deeper bass response, and reduction of distortion and standing waves inside the speaker enclosure. All of this results in better acoustics with a lower weight and a smaller footprint.

SPECS

Tech Specs

• Powered:Yes

• LF Driver Size:12" EVS-12M

• HF Driver Size:1" DH-1C Titanium Compression Driver

• Total Power:1200W Class D

• Inputs:2 x XLR-1/4 combo, 1 x Dual RCA Stereo

• Outputs:1 x XLR (thru)

• Bluetooth:Yes (control/configure only)

• Frequency Range:51Hz-20kHz (-10dB)

• Frequency Response:57Hz-16kHz (-3dB)

• Crossover Frequency:1700Hz

• Maximum Peak SPL:130 dB SPL

• Horizontal Coverage Angle:90 Degrees

• Vertical Coverage Angle:60 Degrees

• Signal Processing:QuickSmart DSP

• Software:QuickSmart Mobile app

• Enclosure Material:Polypropylene Composite

• Mounting Options:Pole Mount, Floor Wedge, 3 x M10 Fly Points

• Power Source:Standard IEC AC cable

• Height:24.76"

• Width:14.29"

• Depth:13.54"

• Weight:34.39 lbs.
