Tannoy Reveal 502 5 inch 75W Active Studio Monitor (Each)

Tannoy Reveal 502 5 inch 75W Active Studio Monitor (Each)

Tannoy Reveal 502 Studio Monitor is a bi-amplified, 5-inch studio monitor featuring 75W custom-tuned amps and a wide frequency range. The Reveal 502 Studio Monitor is ideal for mixing and mastering applications, thanks to its extended frequency response and premium-grade components. The result is clear and crisp audio that is transparent and balanced, ideal for mixing and mastering applications.

It features a 5-inch woofer and a 1-inch soft-dome tweeter working together with an active crossover for optimal audio fidelity. The front-firing bass port provides optimal low-frequency performance, providing more pronounced bass. It also includes volume & EQ settings, customising the way the monitor reacts.

Ideal for project mixing and mastering

The Tannoy Reveal 502 Studio Monitor is comprised of a 5-inch super-efficient woofer and a 1-inch soft-dome tweeter that work together through a bi-amplified module for optimal audio performance. The wide frequency range spans from 49Hz - 43 kHz, capturing every nuance from your source audio in immense detail. The 75W custom-tune bi-amplified module helps to provide the power for the drivers, retaining its high-end clarity even at extreme volumes. The result is tonal clarity with transparent sound, ideal for a range of applications from mixing and mastering to project studios, gaming more.

Active crossover and EQ settings

The Reveal 502 features an active crossover, providing a wider sweet spot for added convenience. The crossover is accompanied by a front-firing bass port that provides added depth and power for the low-end. It also boasts integrated EQ controls as well as an adjustable volume setting. This allows you to ‘tune’ the speaker to your own requirements, ideal for catering to different spaces and environments, for optimal audio fidelity.

Sleek design, versatile connectivity

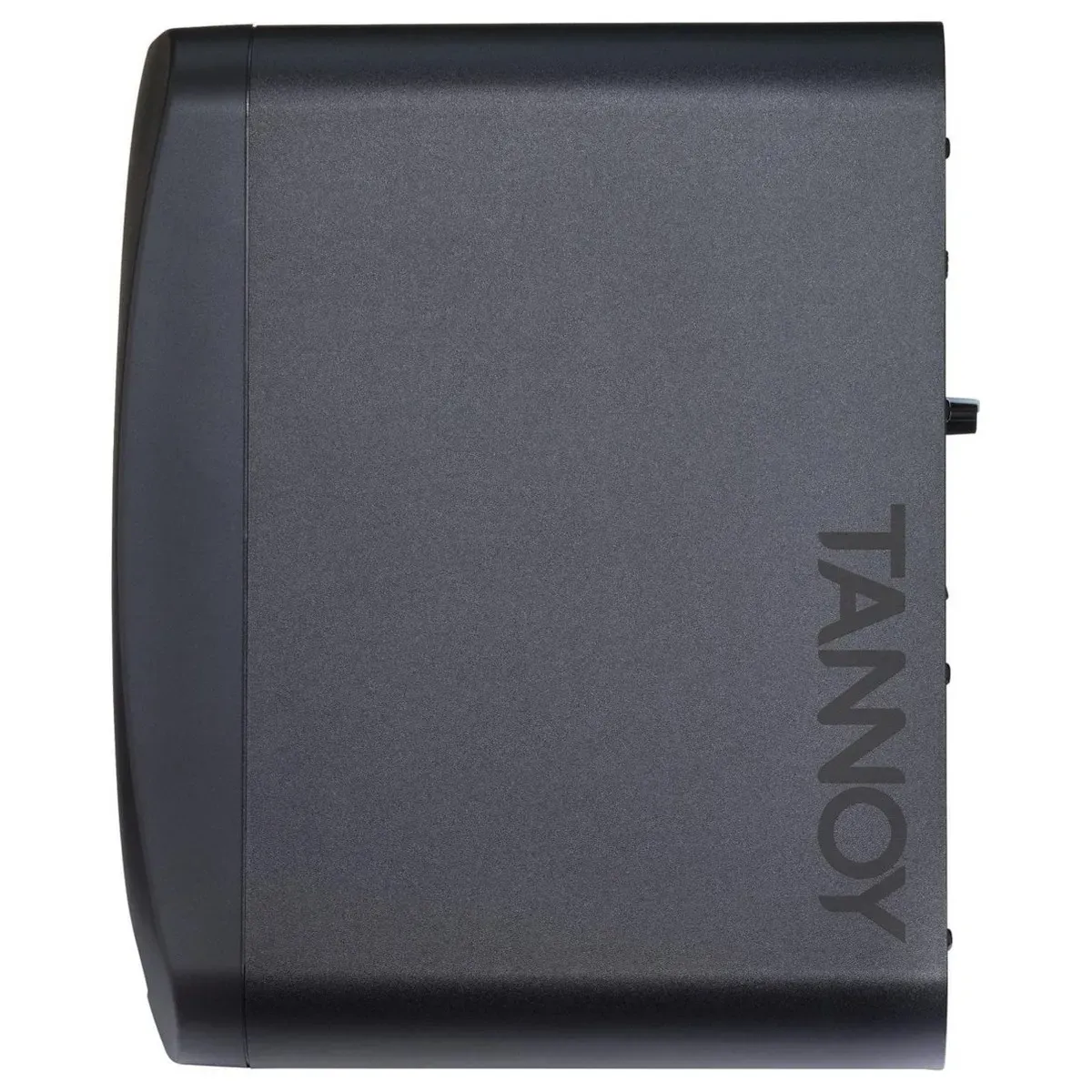

The compact yet robust design is ideal for project studios, home recording, professional studios and more. The monitor features a rubber-padded base for acoustical isolation, helping to minimise resonance while in use.

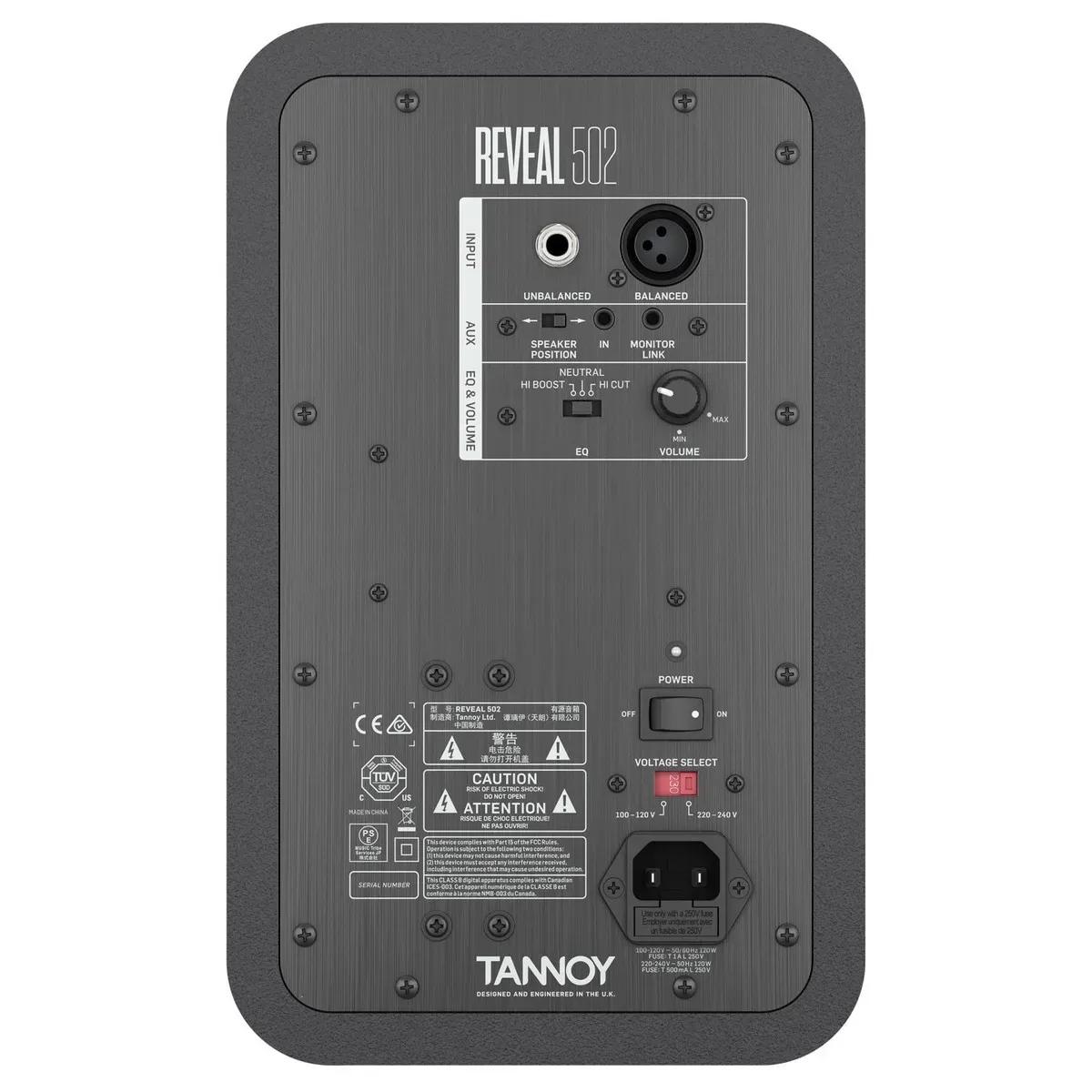

One of the most unique features of the studio monitor is the AUX Link connectivity, allowing you to plug in an external sound source via the headphone output, as well as linking two Reveal 502 monitors together for instant stereo setup. This is ideal for producers on the move, allowing you to mix on the go while, from laptops to portable music players. It also features a range of versatile connectivity including balanced XLR and unbalanced ¼-inch inputs.

Features

• 75 Watt Bi-Amp module and active crossover filter ensures maximum power and tonal clarity

• Balanced and Unbalanced inputs for maximum flexibility

• Adjust volume and EQ to match your listening

• Rubber padded base for acoustical isolation

• Accurately tuned front-firing bass port -allows near-wall placement and ensures optimal LF performance

Specifications

• Frequency response: 49 Hz - 43 kHz

• Maximum SPL: 108 dB

• Crossover frequency: 2.3kHz

• Power output: 75 Watts

• LF: 50 Watts

• HF: 25 Watts

• THD: <0.7%

• Inputs:

• 1 x XLR, balanced 20kΩ

• 1 x 1/4" balanced 10kΩ

• Mini jack 10kΩ

• Outputs: Mini jack

• HF EQ Settings: -1.5dB HF Cut / neutral / +1.5dB HF Boost

• Dimensions (HxWxD): 300 x 184 x 238 mm (11.8 x 7.2 x 9.4")
